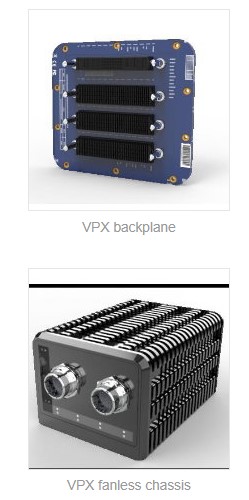

VPX backplane, VPX chassis

Customization and standard VPX backplanes, chassis, boards are available.

Specifications：
● Features
- Compliant to VITA 46.0 Baseline.
- Compliant to VITA 62.
- OPEN VPX 65.0 Standard.
- Rugged 3U Euro card form factor.
- ESD Ground protection.
- 1.6 High-speed Multi-gig connector.
● Specifications
- 16 years.
- 1 oz. copper power and ground.
- 3.2 mm think PCB, FR4 or equivalent.
● Profiles
- BKP3-CEN03-15.2.9-n.
- Slot 1 Compliant SLT3-PAY-2F-14.2.7.
- Slot 2, 3 Compliant SLT3-PER-1F-14.3.2.
● Power Requirement
- DC +12V。
- DC +5V
- DC + 3.3V
● Temperature
- Operating Temperatures: 0° to +60 °C
- Storage Temperatures : -40° to +85 °C
● Mechanical Dimension
- Dimensions (WxH) : 130 x 140 mm
- Customization is available.

Features：
● VPX
● Compliant to VITA 46.0 Baseline
● Compliant to VITA 62
● OPEN VPX 65.0 Standard
● Rugged 3U Euro card form factor
● ESD Ground protection
● High-speed Multi-gig connector
