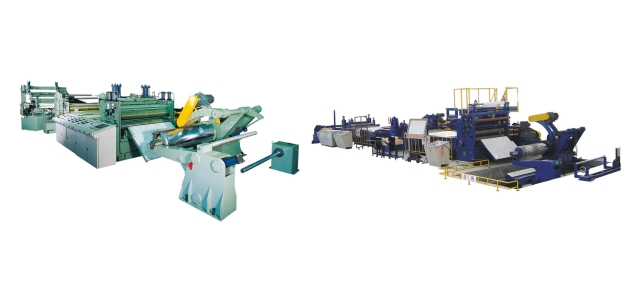

Coil Slitting Machine

This machine is designed to slit for stainless steel coil or mild steel coil. The motor coil shall be slit and become various small steel strips by circular knife. Its main target is to offer the steel strip for downstream maker to use.




Machinanism：


Uncoiler
Leveler
Looping pit table (I)
Side guide
Slitter
Looping pit table (II)
Tension pad
Recoiler
Exit coil car








Modle
Coil Width
Wall thickness
Machine Speed
Coil Weight


JWSL-0530
500mm (Max.)
0.3mm - 2.0mm
10 - 150 M/min
10 MT


JWSL-0630
650mm (Max.)
0.3mm - 3.0mm
10 - 120 M/min
10 MT


JWSL-4020
1300mm (Max.)
0.3mm 2.0mm
10 - 150 M/min
20 MT


JWSL-4040
1300mm (Max.)
0.5mm - 4.0mm
10 - 120 M/min
20 MT


JWSL-4060
1300mm (Max.)
1.2mm - 6.0mm
10 - 75 M/min
20 MT


JWSL-5040
1600mm (Max.)
0.5mm - 4.0mm
10 - 120 M/min
25 MT


JWSL-5060
1600mm (Max.)
1.2mm - 6.0mm
10 - 75 M/min
25 MT


JWSL-5080
1600mm (Max.)
2.0mm - 8.0mm
10 - 60 M/min
25 MT


JWSL-7120
2100mm (Max.)
3.0mm - 12.0mm
10 - 40 M/min
25 MT
