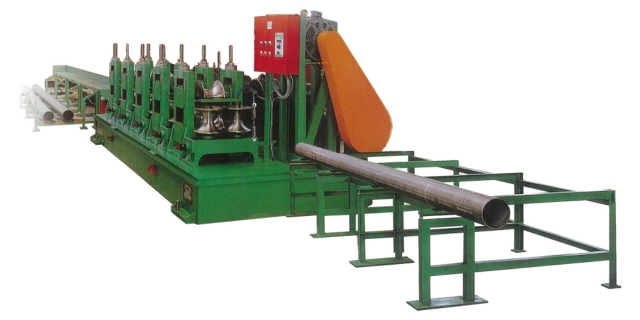

Sizing Machine
Detail Specifications / Descriptions
Before making the stainless steel pipe for industrial use, it shall be treated with annealing. However, after annealing, the tube is crude and curved deform. This sizing machine is specially designed for initial sizing and straightening purpose.
Model
Dimension
Machine Speed
Vector Motor
JWH2-5 Ø21.34 mm - ø48.26 mm 4.5 - 18 M/min AC 15 HP x 1 pcs
JWH4-5 Ø60.33 mm - ø114.3mm 3 - 12 M/min AC 20 HP x 1 pcs
JWH8-5 Ø101.6 mm - ø219.08 mm 2 - 9 M/min AC 30 HP x 1 pcs
JWH12-5 Ø141.3 mm - ø323.85 mm 1.5 - 6 M/min AC 30 HP x 1 pcs
