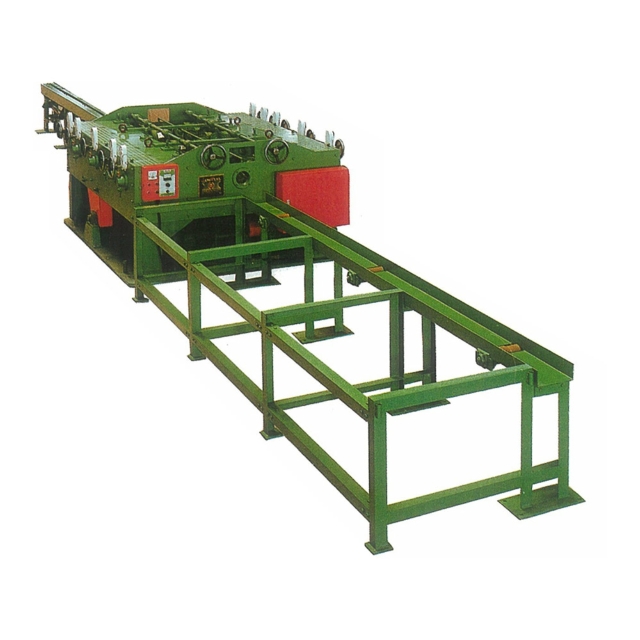

Round Tube Straightener
Detail Specifications / Descriptions
It is designed for tube forming machine to straighten and truing-up for deformed tube and industrial pipe under production. All bended tubes and steel drawing tube can be processed under truing-up treatment. The secondary product for testing can be straightened to become as normal product so as to increase the economical margin.
Model
Dimension
Wall Thickness
Machine Speed
Vector Motor
JWD1-7 Ø9.5 mm - ø38.1 mm 0.5 mm - 2.0 mm 12- 36 M/min AC 7.5 HP
JWD4-7 Ø15 mm - ø100 mm 1.5 mm - 7.0 mm 6 - 18 M/min AC 20 HP
JWD8-7 Ø88.9 mm - ø219.08 mm
2.5 mm -12 mm
2.5 - 12 M/min
AC 50 HP
