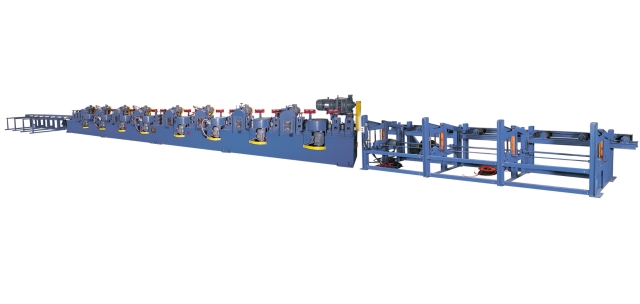

Square & Rectangular Tube Polishing

This polisher is specially designed to polish for surface of round & rectangular tube under mass-production. Its main purpose is to increase the output speed, to beautify the outlook and to reduce the transporting delivery times so as to save labor and to keep safe for high efficiency, low cost and high margin.





Main parts of the machine:




Auto feeding table
Polisher
Run out table











Model
Dimension
Head
Machine Speed
Grade
Vector Motor


JWF2-4
10x10 mm - 50x50 mm
16 heads
2- 8 M/min
400# (max.)
AC 5HP x 16 pcs


JWF2-8
10x10 mm - 50x50 mm
32 heads
2 - 12 M/min
400# (max.)
AC 5HP x 32 pcs


JWF4-6
30x30 mm - 100x100 mm
24 heads
3- 8 M/min
400# (max.)
AC 7.5HP x 24 pcs


JWF6-8
80x80 mm - 150x150 mm
32 heads
1- 7 M/min
400# (max.)
AC 10HP x 32 pcs
