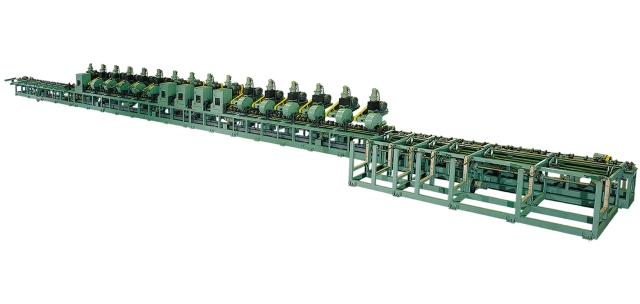

Round Tube Polishing Machine
- Model:
- JWG4-16、JWG2-8
Detail Specifications / Descriptions
This polisher is specially designed to polish for surface of stainless steel tube under mass-production.Its main target is to increase the output speed, to beautify the outlook and to reduce the transporting delivery times so as to save labor and to keep safe for high efficiency, low cost and high margin.
Main parts of the machine:
Auto feeding table
Polisher
Run out table
Model
Dimension
Head
Machine Speed
Grade
Vector Motor
JWG2-8
Ø9.5mm - ø50.8mm
8 heads
2- 15 M/min
600# (max.)
AC 5HP x 8PCS
JWG2-10
Ø9.5mm - ø50.8mm
10 heads
2 - 15 M/min
600# (max.)
AC 5HP x 10PCS
JWG4-14
Ø31.8mm - ø114.3mm
14 heads
2 - 9 M/min
600# (max.)
AC 7.5HP x 14PCS
JWG4-16
Ø31.8mm - ø114.3mm
16 heads
2 - 9 M/min
600# (max.)
AC 7.5HP x 16PCS
JWG8-12
Ø101.6mm - ø219.08mm
12 heads
1 - 5 M/min
600# (max.)
AC 7.5HP x 12PCS
