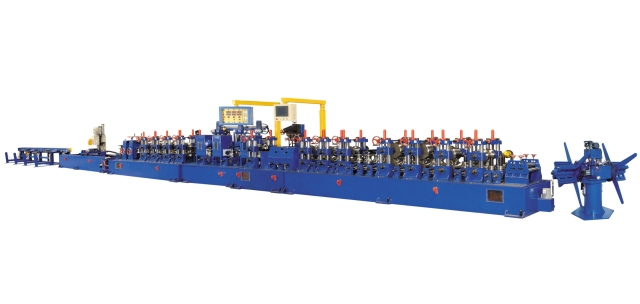

Stainless Steel Tube Forming Machine

Stainless Steel Tube Forming Machine

Model:
JW-B-45S、JW-B-60S、JW-B-80S、JW-B-80 etc

Detail Specifications / Descriptions




It is specially designed for forming and welding of stainless steel tube under mass-production. Its main purpose is to increase the output, to upgrade the quality and to reduce the consumption.It is easy to operate, labor-saving, high safe to meet the requirement of high efficiency, low cost and high margin.

Main parts of the machine: ※ Optional accessories
  1. Uncoiler
  2. 3-stage roller forming machine: a.Forming b.Welding c.Sizing
  3. Outside bead remover
  4. Auto cut-off unit
  5. Run out table
  • Quick change system
  • Inside bead remover
  • Tri-cathode welder
  • On line annealing

Model Dimension Wall Thickness Machine Speed Vector Motor
JW-B-45S Ø12.7mm - ø38.1mm 0.5mm - 2.0mm 1.0 - 13.2 M/min AC 15HP x 2
JW-B-45 Ø13.8mm - ø33.4mm 1.2mm - 3.4mm 1.0 - 4.0 M/min AC 15HP x 2
JW-B-60S Ø25.4mm - ø76.2mm 0.7mm - 3.0mm 0.5 - 10.0 M/min AC 15HP x 2
JW-B-60 Ø26.67mm - ø76.2mm 1.6mm - 5.0mm 0.5 - 3.2 M/min AC 20HP x 2
JW-B--80S Ø63.5mm - ø127mm 1.2mm - 4.0mm 0.4 - 8.5 M/min AC 20HP x 2
JW-B-80 Ø48.68mm - ø114.3mm 1.6mm - 6.0mm 0.4 - 2.7 M/min AC 30HP x 2
JW-B-100 Ø114.32mm - ø219.08mm 2.0mm - 8.2mm 0.3 - 2.5 M/min AC 40HP x 2
JW-B-120 Ø168.28mm - ø323.85mm 2.7mm - 9.5mm 0.3 - 2.5 M/min AC 50HP x 2
JW-B-180 Ø426mm - ø631mm 6.0mm - 16.0mm 0.2 - 2.0 M/min AC 75HP x 2
