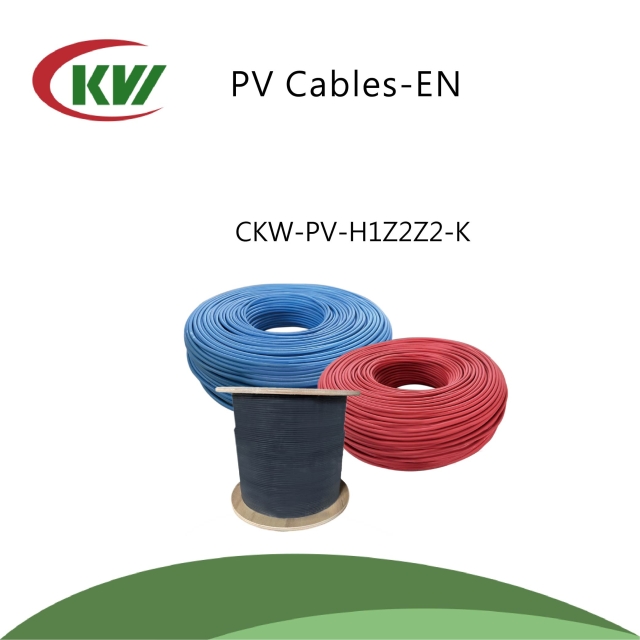

PV Cables-EN
- Model:
- CKW-PV-H1Z2Z2-K
- Country of Origin:
- Taiwan
- Material:
- PV
- Color:
- RED、BLUE、BLACK
Detail Specifications / Descriptions
PV Cables-EN
Products Features：
(1) Safety and Strict QC management, Made in Taiwan.
(2) Complete Series of Products Ranges.
(3) Soft and Flexible Easy to Process.
(4) LSZH environment friendly products for IEC/EN standard.
(5) Good cold flexibility, Cross-linked insulation compound.
(6) High temperature resistant, the materials do not melt or flow.
(7) The package and length can be modified according to the requirements of customers.
Products Specifications：
● Conductor Size：2.5mm²、4mm²、6mm² 、10mm²、16mm²
● Rated voltage：UL : 600V~2KV；IEC/EN : 1.5kV
● Rated temperature：90 °C ( Max. temperature at conductor：+ 120 °C )
● Ambient temperature：-40 °C up to + 90 °C
Certifications：
UL 4703、IEC 62930:2017、EN 50618:2014
Product Application：
● A Solar PV Cable is the interconnection cable used in photovoltaic power generation system, to interconnect solar panels and other electrical componen like junction boxes, inverters and batteries of a photovoltaic system and are designed to be UV resistant and weather resistant and weather resistant.
● Power wiring of grounded or ungrounded photovoltaic power systems.
