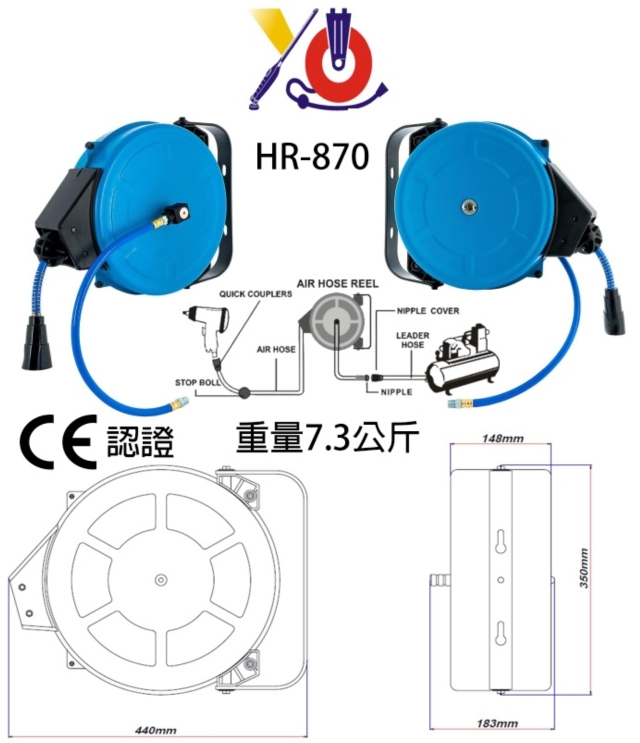

Automatic storage air duct iron shell wheel seat (HR-870))
- Model:
- HR-870A/B/C
- Country of Origin:
- Taiwan
- Material:
- Iron shell
- Color:
- Blue or customized color

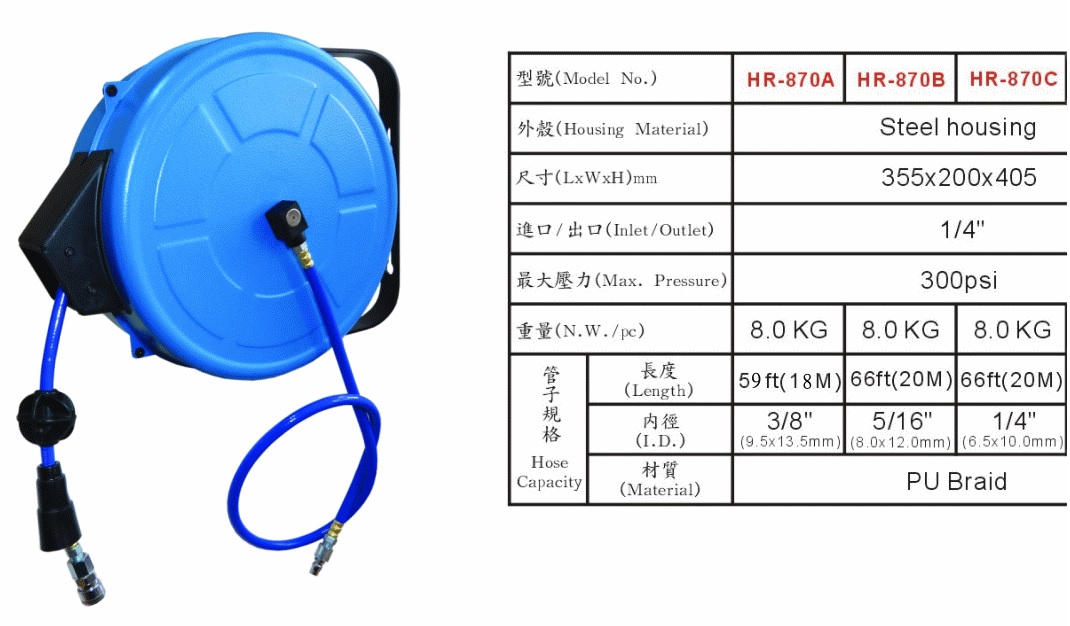

Detail Specifications / Descriptions
HR-870A PU Braid I.D. 9.5mm X O.D. 13.5mm (3/8"), The length of the air inlet pipe is 1M (3.28ft), the length of the air outlet pipe 17M (55.77ft), Features 1/4" inlet and outlet buds, metal housing, 300psi operating pressure.
HR-870B PU Braid I.D. 8mm X O.D. 12mm (5/16"), The length of the air inlet pipe is 1M (3.28ft), the length of the air outlet pipe 19M (62.34ft), Features 1/4" inlet and outlet buds, metal housing, 300psi operating pressure.
HR-870C PU Braid I.D. 6.5mm X O.D. 10mm (1/4"), The length of the air inlet pipe is 1M (3.28ft), the length of the air outlet pipe 19M (62.34ft), Features 1/4" inlet and outlet buds, metal housing, 300psi operating pressure.
Has passed CE certification.
