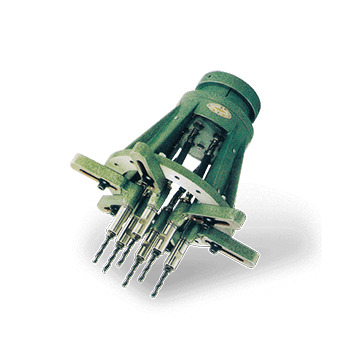

U-Type 2~14 Spindle Unit
- Model:
- U-110,U-165,U-200,U-250,U-300
Detail Specifications / Descriptions
| Model | Collet | Capacity | Spindle Adjust Range | Spindle No. Available |
|---|---|---|---|---|
| U-110 | C-5 | 5mm | 13-110mm | 2~6 |
| C-6 | 6mm | 18-110mm | ||
| C-9 | 8mm | 28-110mm | ||
| U-165 | C-6 | 6mm | 18-165mm | 2~10 |
| C-9 | 8mm | 26-165mm | ||
| C-12 | 11mm | 28-165mm | ||
| U-200 | C-6 | 6mm | 18-200mm | 2~12 |
| C-9 | 8mm | 26-200mm | ||
| C-12 | 11mm | 30-200mm | ||
| U-250 | C-6 | 6mm | 18-250mm | 2~12 |
| C-9 | 8mm | 30-250mm | ||
| C-12 | 11mm | |||
| U-300 | C-6 | 6mm | 18-300mm | 2~14 |
| C-9 | 8mm | 30-300mm | ||
| C-12 | 11mm |
