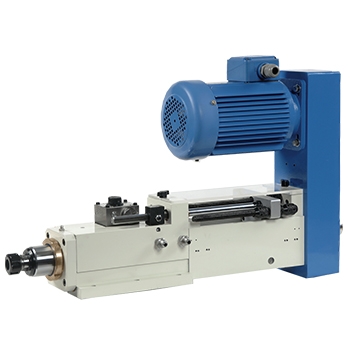

Hydraulic Drilling Unit

Model	H-570H	H-5100H	H-6150H	H-7130H	H-7150H	H-8130H	H-9150H	H-12150H
Capacity	10mm	10mm	16mm	25mm	25mm	30mm	35mm	50mm
Total Stroke	70mm	100mm	150mm	130mm	150mm	130mm	150mm	150mm
Braking Stroke	70mm	100mm	150mm	130mm	150mm	130mm	150mm	150mm
Speed Range	1000-2000-3000	1000-2000-3000	1000-1500-2000	300-1500 (optional)	300-1500 (optional)	300-1500 (optional)	300-1500 (optional)	50-1200 (optional)
Motor	0.75kw		1.5kw	1.5kw	1.5kw	2.25kw	2.25kw	3.75kw
Tool Holder	ER20 / JT6		ER25 / MT2	ER25 / MT2	ER32 / MT3	ER40 / MT4	MT4 / NT40	MT4 / NT50
Weight	38kgs	45kgs	62kgs	105kgs	105kgs	125kgs	125kgs	285kgs

Company:	LIANG LIH MACHINE CO., LTD.
Address:	No. 247, Yaxiu Rd., Daya Dist., Taichung City, Taiwan 428
Telephone:	886-4-2560-1100
Fax:	886-4-2560-1012
E-Mail:
URL:	www.ktk.com.tw
