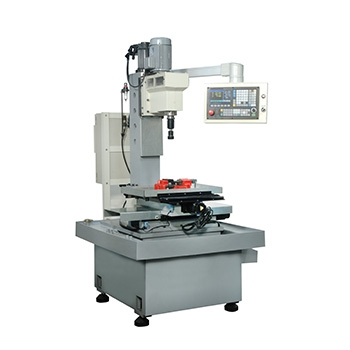

CNC Drilling / Milling Machine

CNC Drilling / Milling Machine

Model:
CNC-DB-40EV

Detail Specifications / Descriptions

ModelCNC-DB-40EV
Max. Milling Capacity25mm
Max. Drilling Capacity65mm
Spindle TaperBT40
X/Y/Z Axis TravelX-axis: 300mm Y-axis: 300mm Z-axis: 280mm
Spindle Speed
4-Pole
8-Pole
H-speed: 860-2800rpm L-speed: 430-1400rpm
H-speed: 430-1400rpm L-speed: 215-700rpm
Spindle T table150-450mm
Spindle Motor1.5HP 4P/8P
CNC SystemSYNTEC
X Axis Servo Motor0.75kw
Y Axis Servo Motor0.75kw
Z Axis Servo Motor0.75kw with 1:3 Gear Reducer
Slide BaseX-axis: 350 x 360mm Y-axis: 305 x 630mm
Slide Saddle300 x 450mm
Loading Weight100kgs
T-SlotM12S
Cooling Motor1/8 HP
Machine Dimension1400 x 1200 x 2000mm
Weight1100kgs
