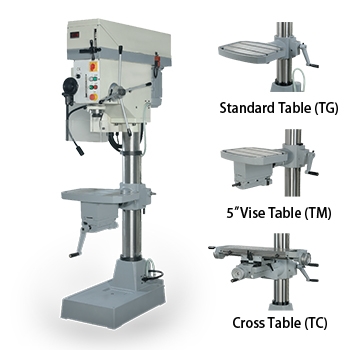

MP-45MV Mechanic Variable Speed Drilling & Tapping Machine
- Model:
- MP-45MV
Detail Specifications / Descriptions
Model | MP-45MV | MPT-45MV |
---|---|---|
Function | Drilling | Drilling & Tapping |
Max. Drilling Capacity | 45mm | 45mm |
Max. Tapping Capacity | - | M26 |
Spindle Taper | MT4 | |
Spindle Stroke | 130mm | |
Quill Feed | Automatic 0.06-0.1-0.2mm | Manual |
Spindle Speed (H) (L) | Mechanic Variable Speed 240-1800 rpm 170-900rpm | |
Column Diameter | 140mm | |
Spindle to Column | 375mm | |
Table Diameter (TG) (TM) (TC) | 300x550mm 390x505/5"Vise 255x630mm | |
Table Travel (TC) | X-axis:425mm Y-axis:200mm Z-axis:440mm | |
Spindle to Table (TG/TM) (TC) | 380-840mm 220-660mm | |
Base Diameter | 450x720mm | |
Motor(2-speed) | 1.5 / 3.0kw | |
Coolant | 0.125kw | |
LED Light | 24V | |
Overall Height | 2025mm | |
Weight | 500kgs |
