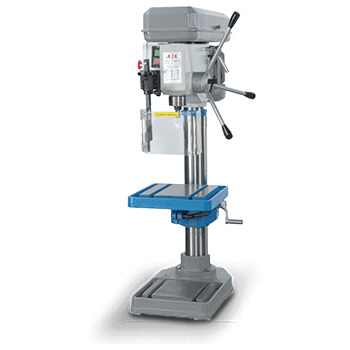

Manual Drilling Machine Square Table
- Model:
- TB-16
Detail Specifications / Descriptions
Model | TB-16 | TB-18 | SB-18 | SB-25 | SB-32 |
---|---|---|---|---|---|
Max. Drilling Capacity | 16mm | 18mm | 20mm | 25mm | 30mm |
Spindle Taper | MT2 | MT2 / MT3 | MT2 / MT3 | MT3 | MT4 |
Spindle Stroke | 80mm | 90mm | 90mm | 120mm | 140mm |
Spindle to Column Distance | 180mm | 230mm | |||
Quill Feed | Manual | Automatic | Manual | ||
Number of Speed | 9 | 12 | 4 | 9 | |
Spindle Speed rpm | 190-2800 | 230-3100 | 480-1980 | 230-1910 | 230-1910 |
Diameter of Column | 80mm | 92mm | 102mm | ||
Dimension of Table | 300x300mm | 350x350mm | 400x400mm | ||
Dimension of Base | 450x310mm | 600x380mm | 600x380mm | ||
Spindle to Table Distance | 420mm | 485mm | 420mm | 720mm | 670mm |
Spindle to Base Distance | 650mm | 725mm | 620mm | 1250mm | 1250mm |
Motor | 0.75kw | 1.1kw | 0.75kw | 1.5kw | 2.0kw |
Overall Height | 1080mm | 1060mm | 1800mm | ||
Weight | 70kg | 85kg | 100kg | 180kg | 210kg |
