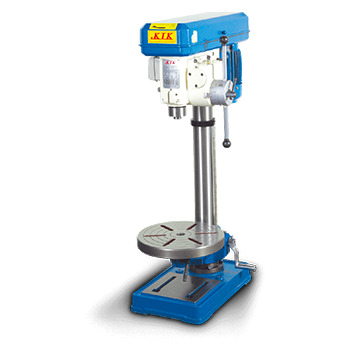

Auto Feed Drilling Machine
- Model:
- LG120
Detail Specifications / Descriptions
| Model | LG-120 | LG-250 |
|---|---|---|
| Max. Drilling Capacity | 16mm | 25mm |
| Spindle Taper | MT2 | MT3 |
| Spindle Travel | 100mm | 140mm |
| Spindle Speed | 470-1750 | 250-2500 |
| Quill Feed | Automatic | |
| Number of Speed | 4 | 6 |
| Swing | 360mm | 460mm |
| Column Diameter | 80mm | 102mm |
| Table Diameter | 320mm | 420mm |
| Base Diameter | 300x500mm | 380x600mm |
| Spindle to Table Distance | 400mm | 630mm |
| Spindle to Base Distance | 600mm | 930mm |
| Motor | 1HP | 2HP |
| Overall Height | 1050mm | 1600mm |
| Weight | 100kg | 220kg |
