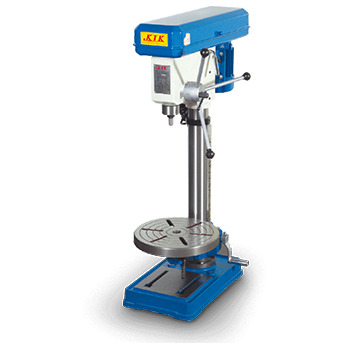

Manual Drilling Machine Round Table

Model	LG-13	LG-16	LG-25B	LG-25A
Max. Drilling Capacity	13mm	16mm	20mm	25mm
Spindle Taper	JT6	MT2	MT3	MT3
Spindle Travel	80mm	100mm	120mm	140mm
Spindle Speed	520-2230	240-2840	230-1910	230-1910
Quill Feed	Manual			Manual
Number of Speed	4	9	9	9
Swing	360mm	360mm	460mm	460mm
Column Diameter	80mm	80mm	92mm	102mm
Table Diameter	320mm	320mm		420mm
Base Diameter	300x500mm	300x500	335x580	380x600mm
Spindle to Table Distance	450mm	450mm	720mm	630mm
Spindle to Base Distance	620mm	620mm	920mm	930mm
Motor	1/2HP	1	2HP	2HP
Overall Height	1070mm	1070mm	1500mm	1540mm
Weight	75kg	90kg	140kg	190kg
