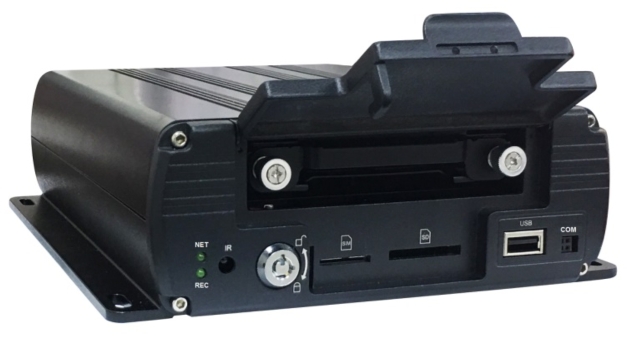

DM-6228H 8CH Mobile Hybrid DVR

DM-6228H

New Taiwan SoC solution, TAA and NDAA compliant

Local
#Embedded HMDVRs for all kinds of vehicles, also suitable for safety driving & drive recorder applications
#1-Din design
#Low power consumption
#Detachable DVR host
#Up to 8CH IP Cam/AHD/TVI/CVI HDVR with hexaplex operation - simultaneous record, live, playback, backup, control, & remote access
#Video compression/decompression with configurable quality
#Max record/playback capabilities: IP CAM: 240/200fps@1080p/720p, Max 80Mbps incoming bandwidth for IP CAM; Analog: 60fps@8MP-lite, 96fps@5MP-lite, 120fps@4MP-lite, 160fps@3MP-lite, 120fps@1080p, 240/200fps@1080p-lite/720p/960H
#Support HDMI/VGA/RCA output
#2.5” internal HDDs or SSD, support redundancy backup data to SD
#Digital watermark
#Up to 8 alarm inputs, support car speeding pulse input with configurable parameters or GPS Data
#Ethernet and Optional 3G/4G/5G/WIFI support for remote access, with dual streaming support
#Built in G sensor for alarm of acceleration, brake, left/right turn
#Built in GPS to support Google Earth and Google Maps
#Delay Off capability

Remote
#DVR browser utility
#Support DDNS Server
#Push alarm notification for portable device
#Two-way audio capabilities
#Audio broadcasting
#Dynamic electronics maps for CMS
#Remote setup, monitoring, backup, alarm notification, & remote software upgrade
#iPhone/iPad/Mac/Android/MS-Windows remote software
#1 I.E./Firefox/Chrome/App for multiple DVRs
#Configurable HTTP/SMTP/FTP/Control/Data port
#Support Google Earth and Google Map
#Support UPnP, P2P and QR code (Optional)
#MS-Windows/iOS/Android SDK for the integration with different applications


Specification:

System
Multiplex: Hexaplex operation - simultaneous record, live, playback, backup, control, & remote access

Video
Format: IP-CAM: ONVIF Profile S, Profile T; Analog: NTSC/EIA or PAL/CCIR or AHD/TVI/CVI
Input: IP-CAM: Up to 8-CH 1080p; IP-CAM supports up to 8MP;
Analog: 8-CH AHD/TVI/CVI 8MP, BNC, 1Vp-p/75ohm, 8 Aviations
Total Max: 8CH Analog or IP-CAM
Output: HDMI / VGA: Up to 1920*1080 ; RCA (CVBS): NTSC – 720*480, PAL – 720*576

Audio
Input: 4 Aviation with Audio ; 1 RCA-jack connector
Output: 1 HDMI ; 1 RCA-jack connector

Record
Compression: Audio: ADPCM
Max frame rate: IP-CAM: 240/200fps@1080p/720p; Up to 80Mbps incoming bandwidth for IP-CAM
Analog: 40fps@8MP-lite, 96fps@5MP-lite, 120fps@4MP-lite, 160fps@3MP-lite, 120fps@1080p, 240/200fps@1080p-lite/720p/960H
Mode: Manual/Schedule/Alarm/Motion/Collision/Acceleration/Brake/Speed/Left-Right-Turn
Pre-record time: 0 - 10 seconds
Post-record time: 0 - 60 minutes

Display
Split windows: 1/4/7/9
Frame rate: Up to 30/25 FPS per camera
Digital Zoom: X2, X4

Playback
Max frame rate: 40fps@8MP-lite, 96fps@5MP-lite, 120fps@4MP-lite, 160fps@3MP-lite, 120fps@1080p, 240/200fps@1080p-lite/720p/960H
Search: Smart search, Date/time, Camera, Alarm, Motion, Video Loss, Collision, Acceleration, Brake, Speed & Left/Right Turn
Operation: Play, Fast Forward, Backward, Pause, Stop, Snapshot, etc.

Storage
HDD: 1 set of 2.5” SATA HDD
Backup: 1 USB 2.0 port, 1 SD slot Support backup data to SD

Alarm
Input: 8 contact or TTL/CMOS signals, polarity selectable
Output: 2 Normally Open or Normally Closed relay outputs
Triggered by: Sensor input, Video loss, Motion, Collision, Speed, Acceleration, Brake (with built-in G sensor) & Left/Right Turn

Network
Ethernet: 1 RJ-45 10/100 BaseT Ethernet connector;
3G/4G/5G: Optional
WiFi: Optional
Protocol: TCP/IP, HTTP, PPPoE, DHCP, DDNS, FTP, TSP, NTP, RTSP, UPnP, P2P (Optional)
Remote: Support Windows 10/8/7, I.E/Firefox/Chrome for DVR, App for Mac/iPhone/iPad/Android phone and Tablet PC

Control / GPS / Car Speed
IR Remote Controller: Yes
RS-232/RS-485: Optional: DV-9400 RS232/485 device ; RS232 x 4 (Interchangeable with RS485 x 2)
GPS: Built-in; Antenna optional
Car speed: 1-pin for car speeding pulse input with configurable parameters or Data from GPS
G sensor: Build-in

Reliability
System recovery: Auto power on after power loss recovery; Watch Dog Timer
Security: Key lock for DVR host; Multi-level password (4 levels, up to 18 accounts)
Moisture proof: With spray coating

Weights & Measures
Dimension / Weight: 185(W) x 235(D) x 60(H)mm / 1.83 KG (without HDD)

Power
Source: +9 ~ 36VDC
Consumption: Max. 70W
Delay ON/OFF: Yes, with configurable timer
12VDC Out: Up to 4.0 A for all cameras

Operating Temperature: -25℃ ~ +70℃, with SDD
