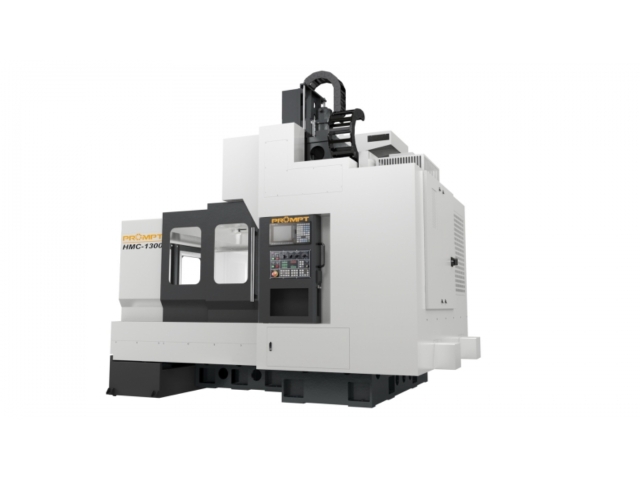

DOUBLE COLUMN MACHINING CENTER

Model HMC-1100/HMC-1300/HMC-1500
Travel X-Axis travel 1100/1300/1500 mm
Y-Axis travel 1100 mm
Z-Axis travel 750 mm
Linear guide way X-Axis RGW45
Y-Axis RGW55
Z-Axis RGW45
Ball screw X-Axis R50xP12
Y-Axis R50xP12
Z-Axis R50xP12
Table Area 1150x1200 / 1150x1400 / 1150x1600 mm
Max. Table Load 2000 kgs
T-slot dia. CD 125 x 18mm x 9T
Spindle Spindle taper BT40 / HSK63
Spindle speed and driving method 15,000 rpm Direct Drive (20,000 rpm built-in)
Distance Spindle nose to table surface 100-850 mm
Spindle center nose to column 456 mm
Tool Tool capacity 24
Max. Length of tool 400 mm
Max. Weight of tool 20 kgs
Tool change time 2.5 sec
Feeding Rapid feed speed X:36, Y:36, Z:36 m/min
Controller Mitsubushi controller MITSUBISHI M80 OPT: (FANUC 0i-MF, SIEMENS 828D)
Motor Spindle motor 15 HP
Feed motor X:3.5, Y:3.5, Z:3.5 KW
Comptessed air supply 6 kg/cm²
Size (Length x Width x Height) 350*395*345 / 370*395*345 / 390*395*345 cm
Net weight 11,550 / 13,050 / 14,550 kgs
Suitable container HMC-1100 / HMC-1300: Split into 2 pallets for a 40'HQ or 20'FR instead
HMC-1500: 20'FR
