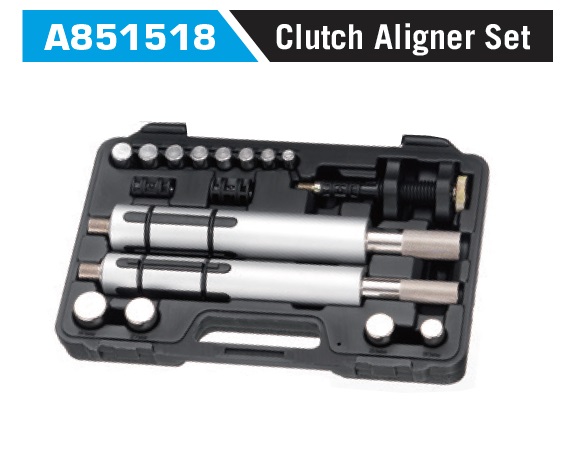

A851518 Clutch Aligner Set
- Model:
- A851518 Clutch Aligner Set
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
.Universal clutch aligner for hub-ø: 15 - 28mm
.Because of the parallel expanding technology it is possible to centre the clutch plate to the clutch pressure plate or to the flywheel
.The clutch aligner kit contains centering sleeves with ø 12, 14, 15, 16, 17, 18, 19 and 20mm
.For trucks with single or double disc clutches (universal)
.The tool allows the correct alignment of single or double disc clutches of trucks and tractors to the engine
.Mandrel No.1 is applicable on interior clutch hub-ø from 36 - 45mm
.Mandrel No. 2 is applicable on interior clutch hub-ø 42 -52mm inside
.The clutch aligner kit contains centering sleeves with ø 20, 25, 27 and 30mm
.PACKING : Blow Mold Case
