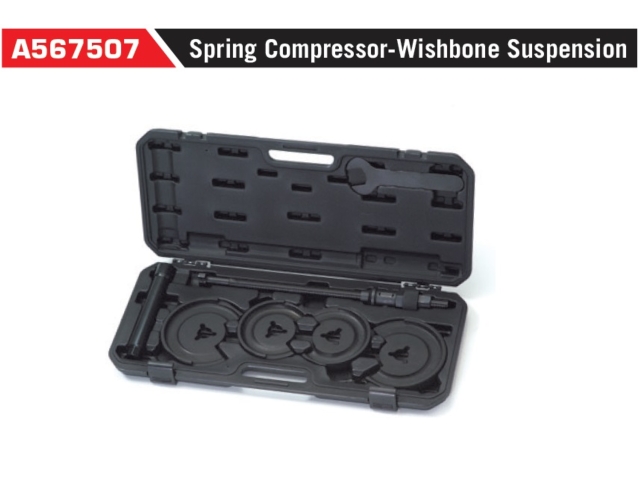

A567507 Spring Compressor-Wishbone Suspension
- Model:
- A567507
- Material:
- Carbon Steel
Detail Specifications / Descriptions
.Using on wishbone suspension and access points in the rear suspension arm
.Features two pairs of carefully shaped yokes that prevent the coil spring from bowing
.Due to the eccentric offset of the central hold, coil springs which have pronounced bow may be safely compressed, removed and replaced without the need to dismantle the rear axle.
.Size/Suitability: ø80 - ø135mm
.Jaw Opening: 115-300mm
.Drive: 24mm Hex
.Socket: 1/2” Drive x 24mm (210mmL)
.Spanner: 32mm
.Application: Mercedes W116, W123, W124,W126, W129, W140, W170, W171, W201, W202, W208, W210, W211 front and rear axis
.Also application for: MITSUBISHI, NISSAN, PEUGEOT, SAAB, TOYOTA, VW, AUDI,
VOLVO, FORD, GM, CHRYSLER, FIAT, RENAULT, etc.
PACKING : Bulk
10pcs/21.5kgs/22.5kgs/1.9’
