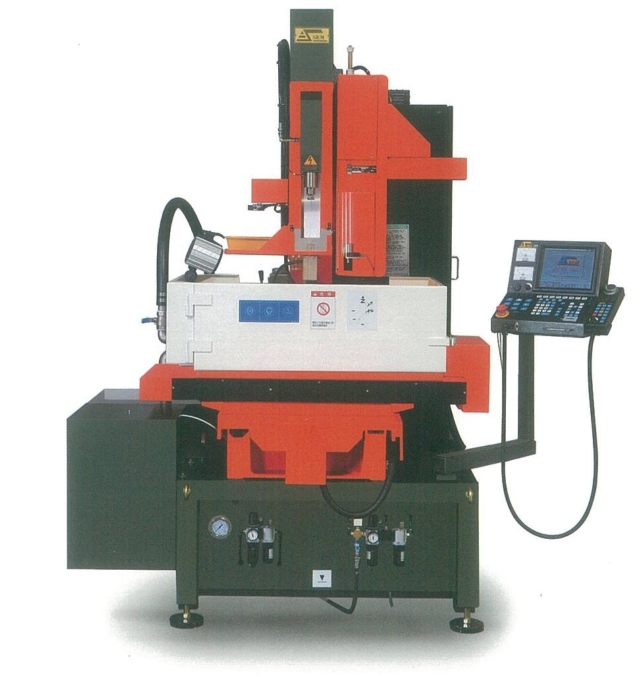

SD430 (Immersion)

SD430 (Immersion)

Model:
SD430
Country of Origin:
Taiwan

Detail Specifications / Descriptions


Specification SD430 (Immersion)
X-travel400 mm
Y-travel300 mm
Z-travel420 mm(400)
Backslide travel300 mm
B-travel360°
U-traveloption
V-traveloption
Table dimension550x310mm
Work table dimension880x585x120 mm
Maximum workpiece dimension750x560x300 mm
Maximum distance-guide to table320 mm
Electrode pipe dimensionØ0.3~Ø3.0 mm
(special Ø0.1~6.0 mm)
Automatic brass tube replacement electrode dimension (option)400mm brass tubeØ0.8~Ø3.0 600mm brass tubeØ01.0~Ø3.0 (Special specifications are negotiable)
Processing fluid capacity (pure water)75 Liter
Water tank capacity75 Liter
Filter Elementoption
Machine weight2150 kgs
Machine Height2250~2550 mm

SD430 (Immersion)
