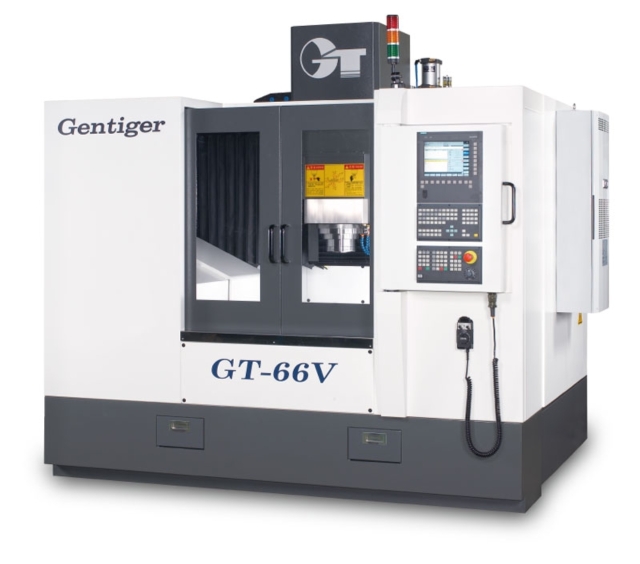

High speed 3-axis machining center
Detail Specifications / Descriptions
Feature
Optimal Machine Structure
Specially designed T shape machine structure features superior rigidity. The width of column is the same as the base. The table is independently installed on base, and fully supported through the entire stroke, assuring maximum accuracy and dependability. Long term accuracy at high speed machining is assured.
Lifetime Accuracy
All castings are stress relieved and seasoning treated for long term accuracy and long service life.
Three Axes Ball Screws
Roller type linear guideways on three axes feature higher feedrate, resist heavier loads, ensure superior dynamic accuracy and a long service life.
High acceleration speed on 3 axes, X-axis 0.8G, Y-axis 0.9G, and Z-axis 1.0G. This outstanding design greatly reduces machining time while upgrading economical efficiency.
3 axes feedrate: rapid feedrate 30 m/min
Positioning accuracy:0.006mm/Full Stroke. (ISO-230-2)
Repeatability: +-0.002mm/Full Stroke. (ISO-230-2)
Cutter balance should be calibrated to within G2.5
