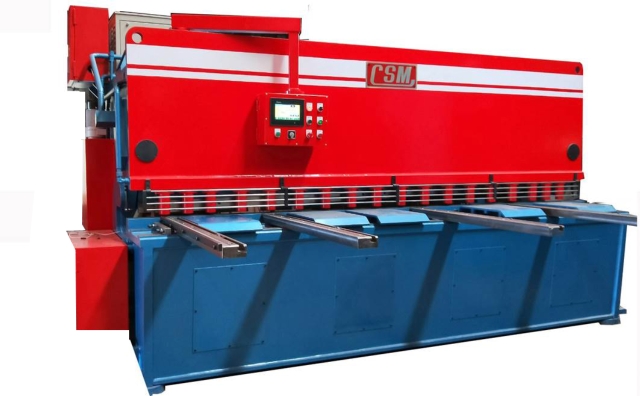

SWING ARM HYDRAULIC SHEARING MACHUNE

SWING ARM HYDRAULIC SHEARING MACHUNE

Hot
Model:
CHS series
Country of Origin:
Taiwan
Material:
Steel
Color:
Red

Detail Specifications / Descriptions

《The structure and configuration》
  ◆ Use high response proportional servo valve hydraulic system /
  motor drive.
  ◆ Design of tool gap angle adjustment. Micro – ADJUSTMENT.
Material SUPPORT DEVICE EDGE SHEET FRAME
  ◆close TYPE PROTECTION PLATE.

《Back gauge》
  ◆Servo motor control. Variable frequency motor control.
  ◆Ball screw structure with double slide.

《 Control system》
  ◆ CSM Control system:
    DELTA 7“ touch screen. Back gauge control system. No segment / inching / single acting / automatic 4-segment cutting control and other functions.
  ◆DAC 310S ( Multilingual ) ( Optional ):
    Bright LCD 128 x 64 display. Visualization of actual and programmed locations ( Optional ). Programmable up to 100 steps. Panel mounting.  Servo control / frequency converter / 2-speed AC control.

《 Press plate cylinder & blade adjusting screw》
  Ensure shear error. Blade adjusting screw. Simple design. Simple design easy adjustment of blade turning over.

《Ball sliding platform》
  Reduce operator burden.

SWING ARM HYDRAULIC SHEARING MACHUNE
