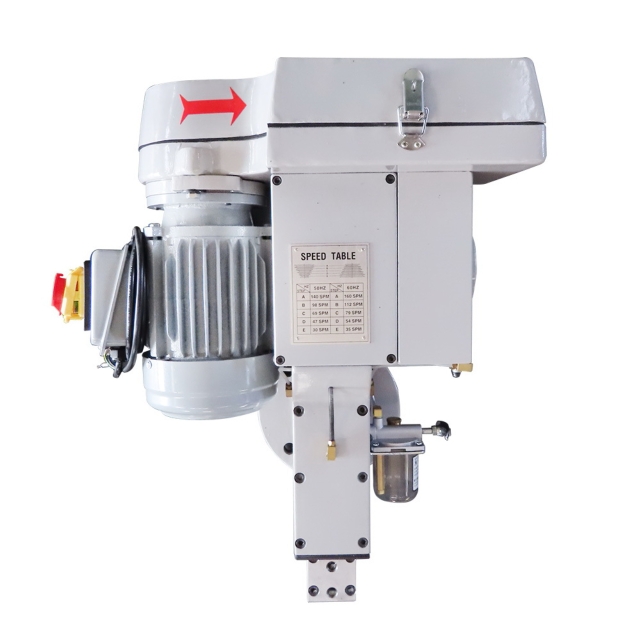

TS-125 Slotting Head

Slotting Head,Milling Machine Accessories

1.Precision Slotting Head TS-125; Stroke: 5"(125mm)

2.Suit to use on Turret Milling Machine as a attachment

3.Can make the key way width from 4mm~10mm

4.Driving Motor: 3/4HP 6P with more strong power driving


Specification：

1. Stroke : 125mm(5")

2. No. of stroke speed change : 5 steps

3. Stroke speed (stroke/min.): 30,47,69,98,140 spm(50HZ)

4. Stroke speed (stroke/min.) : 35,54,79,112,160 spm(60HZ)

5. Driving Motor : 3/4HP-6P


Optional Accessories：

1. Flange A

2. Flange B

3. Slotting bar
