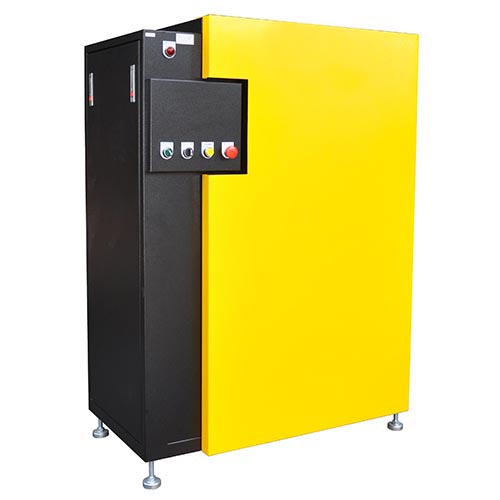

Centralized Dust Removal Systems

Model :JS354CB/JS654 PCB
Voltage :2P/220V 50/60Hz
Consumption Power:2550W /4250W
Air Flow:7.5m3/min:(With three motors): 12.5m3/min (With five motors)
Electric current:12A/20A
Max Vacuum:2000mmH2O
Operating noise :76dB(at 3M)
Drum Capacity :58L
Weight N.W :140kgs/144kgs
Measurement (LxWxH):110*60*155 cm
…………………………………………………………………………………………………………………………………
Accessary：
CB WORK STATION
1-1)CB Work station*1 set
A.CB Work station*1 set
B.Hose hanger *1 set
1-2)Throttle valve +Solenoid-valves*1 set
1-3)2 in 1 Hose for Pneumatic tools(5m) *1 set
…………………………………………………………………………………………………………………………………
2)Ø38mm hose* (Option)
(It’s the additional purchase and the length of the hose could be customized.)

Specifications:
1)Specially designed【 automatic and manual filtering system 】to clean filter and improve Filter life circle helps to maintain maximum suction.
2)The automatically starting option on the Host, could set up the shutdown time and automatic filtering .
3)Emergency switch that could cut down all the power supply when need it.
4)Barrel with positioning placement point, after the dust door is closed, the barrel group is automatically lowered to secure the close space.
5)Equipped with brushless motors、Low temperature-rise、low-noise-level、reliability and durability、 increased efficiency with a reduction in power input、adjustable speed function.
6)Special screening programs for Industrial grade high-density powder, enhance motor life circle.
7)Reduce the environmental pollution, improve the cleanliness for factory.
8)JS354PCB for 6-user applications; JS654PCB for 10-user applications.
Please note that suctions will get lower by increasing users.
9)Offer a massive 58 L stainless steel barrel.
10)CB WORK STATION Specially Designed【Vacuum Suction Automatic Blocking System】make Sure The Suction Supply Only Being Used For The Sander, Increased Suction Effect.
…………………………………………………………………………………………………………………………………
CB WORK STATION Specifications:
1)【Vacuum suction automatic blocking system】makes sure the suction supply only being used for the sander, increased suction effect.
2) The station is equipped Auto/Manual Switch for different demands.
