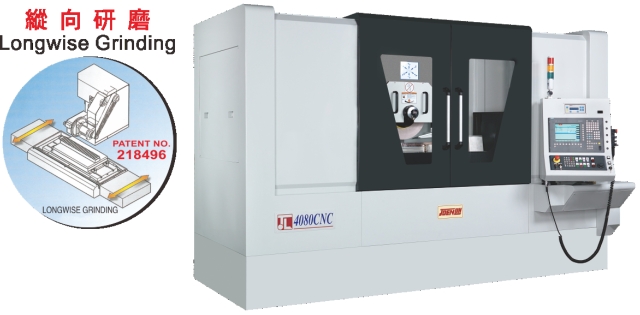

CNC Surface & Profile Grinder(Saddle series)
- Model:
- *JL-4080CNC-344
Detail Specifications / Descriptions
.tg{border-collapse:collapse;border-spacing:0;border-color:#ccc}.tg td{font-family:Arial,sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#ccc;color:#333;background-color:#fff}.tg th{font-family:Arial,sans-serif;font-size:14px;font-weight:400;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#fff;color:#333;background-color:#ccc}.tg .tg-0kcn{background-color:#9b9b9b;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-zs35{background-color:#efefef;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-2bev{border-color:#656565;text-align:left;vertical-align:top}.tg .tg-dsic{background-color:#fff;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-qs0d{background-color:#efefef;color:#000;border-color:#656565;text-align:left;vertical-align:top}td.tg-y698{background-color:#ebebeb;font-weight:700}td.tg-0pky{font-weight:700}td.tg-1{font-weight:100}
Model
JL-4080CNC-340
JL-4080CNC-341(Longwise Grinding)
JL-4080CNC-344(Creep Feed CNC Grinder)
General Capaity
Table size (WxL)(mm)
400x800
400x800
400x800
Max. Stroke (WxL)(mm)
480x1100
430x1100
480x1100
Surface of Magnetic (WxL) (mm)
400x800
400x800
400x800
Max. distance from center of Spindle to table(mm)
600
650
600
Max. tableload (electro magnetic chuck is included)(Kgs)
800
800
800
Spindle
Servo motor(Kw)
18/16
11
28/39
Spindle speed (rpm)
18/16
11
28/39
Dimension of the wheel
(ODxWxB)(mm)
ø355 x 50 x ø127
ø355 x 50 x ø127
ø510 x 50~150 x ø203.2
X-LongitudinalMovement
Stroke(mm)
1100
Z axis:430
1100
driven system(mm)
Ball screw
Ball screw
Ball screw
Servo motor(Kw)
4.5 (4.1)
4
5
Speed(rpm)
0~20
10
0~25
Guildway
Linear guideway
Linear guideway
Linear guideway
Y-WheelheadVertical Infeed
Stroke(mm)
420
470
345
driven system(mm)
Ball screw
Ball screw
Ball screw
Servo motor(Kw)
5
4
5
Speed(rpm)
10
10
3
The Least Input Increment(mm)
0.001
0.001
0.001
軌道
Linear guideway
Linear guideway
Linear guideway
Z-Cross Movement
Stroke(mm)
480
Z axis:1100
480
driven system(mm)
Ball screw
Ball screw
Ball screw
Servo motor(Kw)
3.0 (2.7)
4
5
Speed(rpm)
10
20
5
Guildway
Linear guideway
Linear guideway
Linear guideway
Grinding Wheel dresser
Dimension of diamond roller (OD x W x B)(option)(mm)
ø100 x max.50 x ø52
ø100 x max.50 x ø52
ø100 x max.50 x ø52
Speed(rpm)
5000
6000
6000
Servo motor(Kw)
0.5
0.5
3
Weight
Machine net weight(Kgs)
8000
9000
6000
Space Size
Machine floor space(LxWxH)(mm)
(LxWxH)(mm)
3490 x 3260 x 2355
3490 x 3260 x 2355
3490 x 3260 x 2355
Packing size (L×W×H)(mm)
(LxWxH)(mm)
3700x2300x2550
3700x2780x3050
3700x2780x3050
