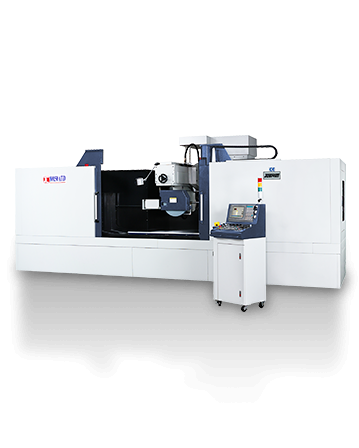

Fully Auto Surface Grinder(Cantilever series)
- Model:
- *JL-80150ATD/JL-80200ATD/JL-80300ATD/ *JL-80400ATD/JL-100150ATD/JL-100200ATD/ *JL-100300ATD/JL-10040
Detail Specifications / Descriptions
.tg{border-collapse:collapse;border-spacing:0;border-color:#ccc}.tg td{font-family:Arial,sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#ccc;color:#333;background-color:#fff}.tg th{font-family:Arial,sans-serif;font-size:14px;font-weight:400;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#fff;color:#333;background-color:#ccc}.tg .tg-0kcn{background-color:#9b9b9b;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-zs35{background-color:#efefef;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-2bev{border-color:#656565;text-align:left;vertical-align:top}.tg .tg-dsic{background-color:#fff;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-qs0d{background-color:#efefef;color:#000;border-color:#656565;text-align:left;vertical-align:top}td.tg-y698{background-color:#ebebeb;font-weight:700}td.tg-0pky{font-weight:700}td.tg-1{font-weight:100}
Model
JL-100150AHD
JL-100200AHD
JL-100300AHD
JL-100400AHD
JL-8015ATD
JL-80200AHD
JL-80300AHD
JL-80400AHD
General Capaity
Table size(WxL)(mm)
1000*1500
1000*2000
1000*3000
1000*4000
800*1500
800*2000
800*3000
800*4000
Max. surface ground(mm)
1000*1500
1000*2000
1000*3000
1000*4000
800*1500
800*2000
800*3000
800*4000
Max. distance from center of Spindle to table(mm)
800 [optional height:1000]
800 [optional height:1000]
800 [optional height:1000]
700 [optional height:900]
800 [optional height:1000]
800 [optional height:1000]
800 [optional height:1000]
700 [optional height:900]
Max. tableload(kgs) (kgs)
2400
3200
4800
5500
2000
2650
3950
5000
LongitudinalMovement
Table speed(infinite elevation)
3~25m/min(120"~1000"/min)
3~25m/min(120"~1000"/min)
3~25m/min(120"~1000"/min)
3~25m/min(120"~1000"/min)
3~25m/min(120"~1000"/min)
3~25m/min(120"~1000"/min)
3~25m/min(120"~1000"/min)
3~25m/min(120"~1000"/min)
Gudieway
double V way
double V way
double V way
double V way
double V way
double V way
double V way
double V way
Cross Movement
Cross feed increment (approx.)(mm)
0.5~20
0.5~20
0.5~20
0.5~20
0.5~20
0.5~20
0.5~20
0.5~20
Cross rapid traverse rate(mm/min)
900
900
900
900
900
900
900
900
Cross hand wheel increment(mm)
1 revolution
5mm(0.1")
5mm(0.1")
5mm(0.1")
5mm(0.1")
5mm(0.1")
5mm(0.1")
5mm(0.1")
5mm(0.1")
1 graduation
0.02mm(0.0005")
0.02mm(0.0005")
0.02mm(0.0005")
0.02mm(0.0005")
0.02mm(0.0005")
0.02mm(0.0005")
0.02mm(0.0005")
0.02mm(0.0005")
Vertical movement
Wheel seat rapid traverse (approx.) (optional) (mm/min)
240
240
240
240
240
240
240
240
Vertical hand wheel (mm)(mm/min)
(X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10&
(X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10&
(X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10&
(X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10&
(X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10&
(X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10&
(X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10&
(X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10&
Auto down feed (optional)(mm)
0.001~0.999
0.001~0.999
0.001~0.999
0.001~0.999
0.001~0.999
0.001~0.999
0.001~0.999
0.001~0.999
Grinding Wheel
Grinding Wheel speed(R.P.M)
60Hz(rpm)
1750R.P.M
1750R.P.M
1750R.P.M
1750R.P.M
1750R.P.M
1750R.P.M
1750R.P.M
1750R.P.M
50Hz(rpm)
1450 R.P.M
1450 R.P.M
1450 R.P.M
1450 R.P.M
1450 R.P.M
1450 R.P.M
1450 R.P.M
1450 R.P.M
Dimension of the wheel
(ODxWxB) (mm)
405*50*127[ Max. 405*75*127]
-
405*50*127[ Max. 405*75*127]
405*50*127[ Max. 405*75*127]
405*50*127[ Max. 405*75*127]
405*50*127[ Max. 405*75*127]
405*50*127[ Max. 405*75*127]
405*50*127[ Max. 405*75*127]
Motor
Spindle motor(HP*P)
10[15-optional]
-
10[15-optional]
10[15-optional]
10[15-optional]
10[15-optional]
10[15-optional]
10[15-optional]
Hydraulic pump motor(HP)
7.5
7.5
10
10
10
1
15
15
Cross feed motor(HP)
1/5
1/5
1/5
1/5
1/5
1/5
1/5
1/5
Vertical Rapid motor (optional)(HP)
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
Water pump (optional)(HP)
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
Weight
Machine net weight/ Kgs(lbs)
13800
15300
18800
21300
12800
14300
17300
20800
Packing weight/ Kgs(1bs)
14800
16500
19800
22800
13800
15500
17800
21800
Size
Machine floor space
(LxWxH)(mm)
5160*2660*2555
6260*2600*2555
8400*2660*2555
10660*2660*2555
5160*2400*2555
6260*2400*2555
8460*2400*2555
10660*2400*2555
Packing size
(LxWxH)(mm)
439*276*297
546*276*297
750*276*297
850*276*597
439*230*297
546*230*297
750*230*297
850*230*597
