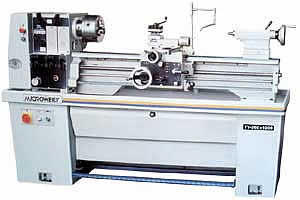

HIGH SPEED PRECISION LATHE 360 SERIES

360 SERIES
TY-360X700/TY-360X1000
-----------------------------------------------------------------

CAPACITY & DIMENSIONS
Swing
Over bed........................356mm(14")
Over cross slide..............235mm(9-1/4")
In gap
Diameter........................515mm(20")
Length...........................115mm(4-1/2")
Center
Height............................180mm(7-1/16")
Admits between
(TY-360X700)...............715mm(28")
(TY-360X1000).............1015mm(40")
Bed
Width.............................205mm(8-1/16")
Length
(TY-360X700)...............1410mm(55-1/2")
(TY-360X1000).............1705mm(67-1/8")
Height............................292mm(11-1/2")
Motor.............................3HP,3ph or 1 ph
(please refer to our quotation)

HEADSTOCK
Spindle
Bore..............................39mm(1-17/32")
Nose .............................D1- 4" ASA std.
Taper
In nose..........................No.5 Morse
In sleeve........................No.3 Morse
Forward & reverse control.....
from third rod lever
(mounted on apron)
Brake............................Foot operated
Speeds number.............12
Range...........................40 to 2500 r.p.m.

CARRIAGE & COMPOUND
Cross slide
Width...........................140mm(5-1/2")
Travel...........................190mm(7-1/2")
Compound rest
Width...........................82mm(3-1/4")
Travel...........................92mm(3-5/8")
Lead screw diameter.....28mm(1-1/8")
Thread..........................6mm pitch
or 4 T.P.I.

TAILSTOCK
Quill
Diameter......................42mm(1-21/32")
Travel..........................110mm(4-3/8")
Taper...........................No.3 Morse
