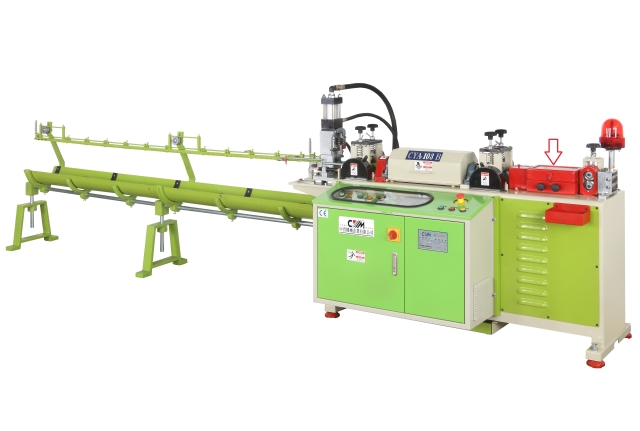

Full Automatic Wire Straightening Cutting Machine

Cutting length can be custom-made for min. length S3m/m, max. length within 12M. (Super-length is controlled by electric preset for high performance and easy operation.)

1. Cutting part adopts hydraulic cutting device.
2. Cutting body adopts movable slide seat equipment (Linear type slide rail)
3. Feed part adopts DISCO adjustable motor speed is for free adjustment.
4. High stability, suitable for forging, auto lathe, rod material, screw, spindle, steel, brass, iron, and metals etc. stainless steel wire material.
5. Flat cutting, low error rate.
6. Wire appearance is not damaged to keep a beautiful outlook.
7. Adopts CE standard electrical engineering control system, high safety, low malfunction rate, good function, and productivity is increased.
8. Low consumption of roller, and not wearing on straightener.


　
　　 Type
　　 CYA-100B
　
　
　　 DIAMETER OF STRINGS
　　 0.5~1.2(m/m)
　

　　 LENGTH OF STRINGS
　　 300~3000(m/m)
　

　　 MORTOR RATING
　　 1/4HP. 1/2HP
　

　　 WEIGHT
　　 N.W140kg. G.W190kg
　

　　 PACKING DIMENSIONS
　　 140(L)×60(W)×75(H)cm
