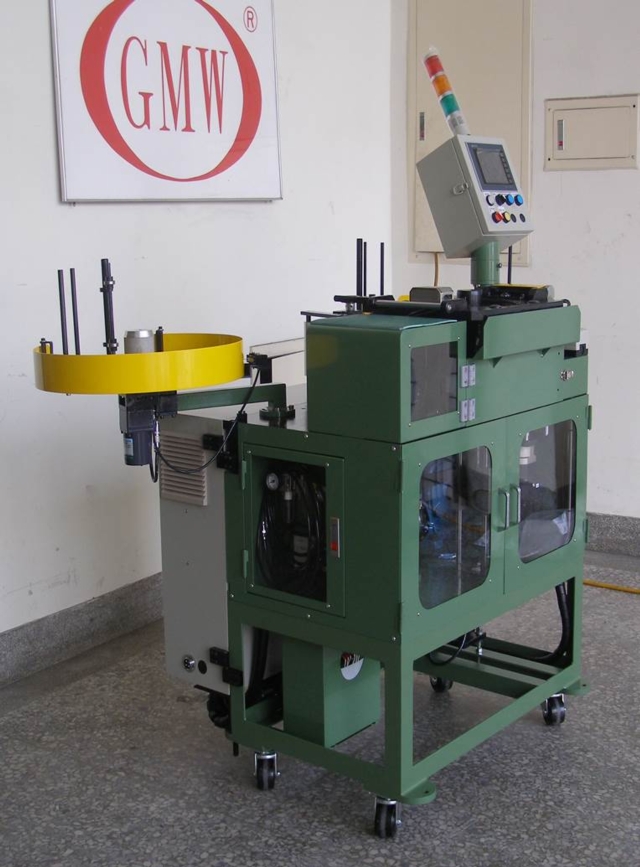

STATOR SLOT CELL INSERTER MACHINE
- Model:
- CS-3E
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
This machine feeds insulation paper from the reel, folds and cuts it to a preset length forms it to suit the shape of rotor slot, inserts it into the slot and indexes the rotor to next slots. This machine repeats the above actions in a cycle until all slots insulated. The only thing operator has to do is to load and unload the rotor on the core nest and depress button to start inserting. Then, the operation-inserting cell is finish. Variety or combination of slot shapes could be insulated by unique tooling system as well.
This machine has a robust construction and has been designed compactly, it can extend the limit of machine and be easy to arrange to production line.
