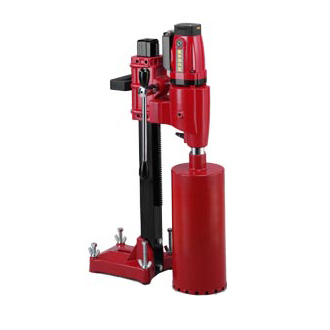

TF-6SN2E

TF-6SN2E

Model:
TF-6SN2E

Detail Specifications / Descriptions

Features of the base

Standard 165Lx125Wx30T mm Aluminum die casting base is rugged, but lightweight and portable.
Base is reinforced for added rigidity & strength.
Four base leveling screws for precise drilling alignment, even on the rough surfaces.
Center mounting slot accommodates anchor bolts, or an optional vacuum assembly the machine securely on the working surface.
Minimum distance to centerline of the hole from wall is 33 mm.


Features of the column

Rigid steel column. 700mm Lx40 mm square, bolts securely into the base.
Optional built-in jackscrew provides stability for ceiling or wall bracing.
Gear rack is welded solidly to the back of the column.


Features of the drilling head

Precision rack and pinion gear system.
Single-lever " slip-through" feed handle.
Whole piece design of the carriage & drilling motor with Aluminum die casting.
Sealed motor switch with overload protection.
Standard maximum bit capacity of 120mm.
Optional PRCD device
