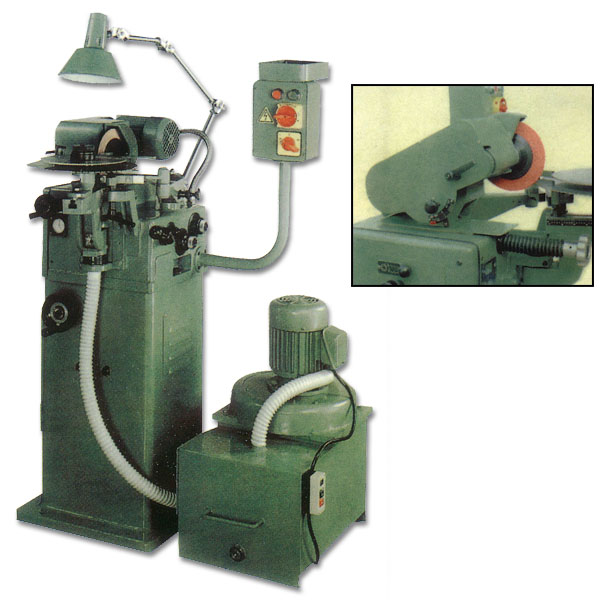

Saw Blade Grinding Machine
Detail Specifications / Descriptions
This high-quality, uniquely designed model makes precision grinding an easy job, saving manpower and time.
Can be used at any factory for the grinding of saw blades quickly and economically with high working efficiency. Ground saw blades feature precision and sharp teeth.
Uses parts made of nodular graphite cast iron (FCD-45) to enhance friction resistance.
Well-arranged adjusting levers allow operator to easily adjust cutting angles, back-lash angles, tooth depths, and tooth pitches, and quickly and precisely sharpen saw blades
Model SG-1 uses variable-speed pulley, of which the speed is adjusted in accordance with tooth pitch variations.
Since the head of the emery wheel can move up and down to easily handle chamfering, there is no need to change the emery wheel.
With a measuring gauge, this unit can be freely adjusted to grind saw blades of different thickness
With an adjusting knob for the control of tooth height, the model SG-1 can grind teeth featuring different heights simultaneously. Model SG-2 can also be equipped with such a knob
Emery wheel motor and mechanism-driving motor ensure safe and precise transmission.
With the ends made with super-hard tungsten carbide, the feeding chuck is more durable than others of its kind, and performs precisely.
