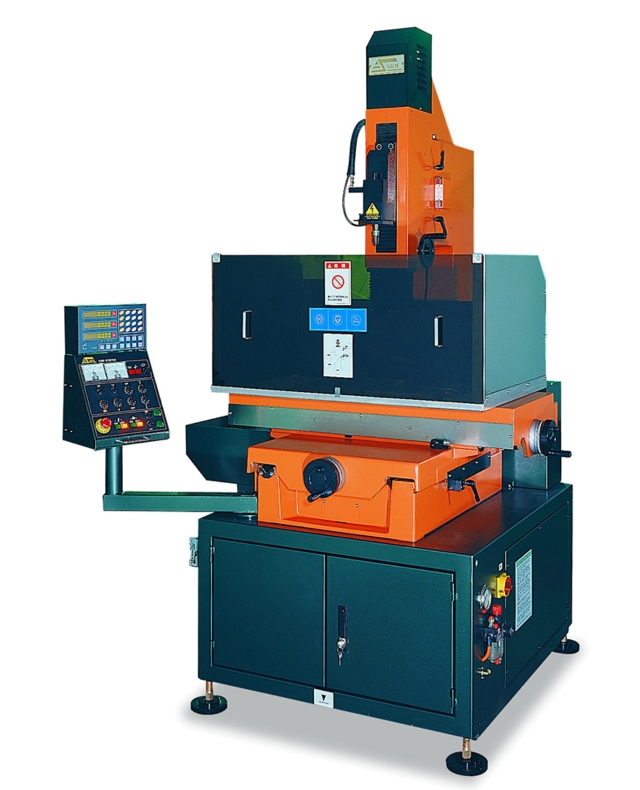

D60
- Model:
- D60
Detail Specifications / Descriptions
‧Manual type & CNC Drilling EDM profession manufacturer.
‧Drilling capacity dia. is fromФ0.1mm to Ф6.0mm.
‧High verticality (deviation) is lower than 0.03.
‧Inbuilt water filtration system and pure water available.
‧Drilling capacity dia. is fromФ0.1mm to Ф6.0mm.
‧High verticality (deviation) is lower than 0.03.
‧Inbuilt water filtration system and pure water available.
‧Ion Exchange Resin Treatment Filter support more machines and raise working efficiency that's over 30%
‧Special circuit design applies to all kinds $ hardened metal materials.
‧Optional discharge oil machining systems for processing tungsten steel and special materials
‧Special circuit design applies to all kinds $ hardened metal materials.
‧Optional discharge oil machining systems for processing tungsten steel and special materials
| Specification | D60 |
|---|---|
| X,Y-travel | 400 x 300 mm |
| Z-travel | 360 mm |
| Backslide travel | 190 mm |
| Vertical head travel | 160 mm |
| Table dimension | 410x210 mm |
| Maximum distance od table quill (Guide) | 400 mm |
| Electrode pipe dimension | Ø0.3~Ø3.0 mm(特殊Ø0.1~6.0 mm) |
| Maximum workpiece dimension | 1000x650x300 mm |
| Capacity | 30 Liter |
| Machine weight | 1300 kgs |
| Machine Height | 2380~2150 mm |
