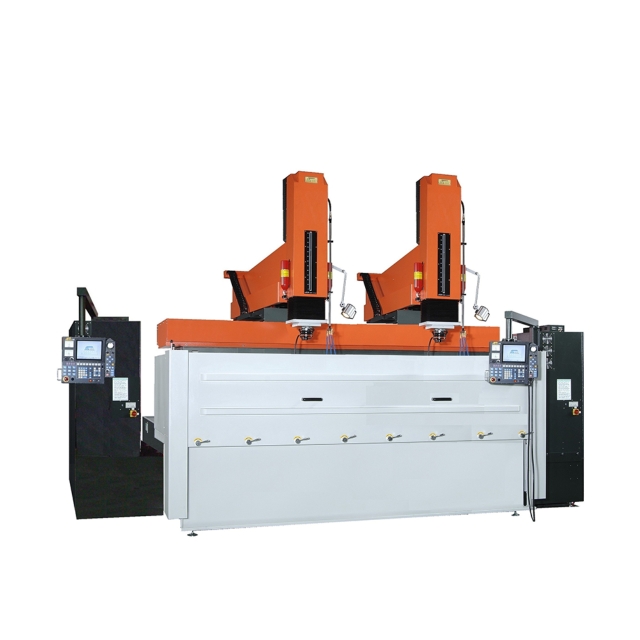

M3010-2H
Detail Specifications / Descriptions
The X. Y& Z axis utilizes AC servo motor.
Multi-cavities machining, ORBIT-CUT machining & Helix machining.
A.T.C. (Automatic Tool change) & C-axis machining available.
The Circle Angle of Sparking is lower than 0.02mm.
Multi-cavities machining, ORBIT-CUT machining & Helix machining.
A.T.C. (Automatic Tool change) & C-axis machining available.
The Circle Angle of Sparking is lower than 0.02mm.
The best surface roughness (Ra) is better than 0.1 µm.
Multi-side ORBIT-CUT machining for X, Y & Z axis
High speed and long distance jumping.
Special Rib shape machining function.
Multi-side ORBIT-CUT machining for X, Y & Z axis
High speed and long distance jumping.
Special Rib shape machining function.
| Specification | M3010-2H |
|---|---|
| X,Y-travel | 單動 2500 x 1000 mm 雙動 1275 x 1000 mm |
| Z-travel | 600 mm |
| Table dimension | 3100 x 1100 mm |
| Work table dimension | 3830x1620x650 mm |
| Maximum table-quill distance | 1350 mm |
| Maximum electrode weight | 300 kgs |
| Maximum table loading | 18000 kgs |
| Dielectric tank capacity | 6000 Liter |
| Filters | 12 pcs |
| Machine weight | 21100 kgs |
| Machine Height | 3850 mm |
| Nominal Current | 90A/5A.120A/5A.150A/5A.180A/5A.240A/5A.300A/5A |
| lnput voltage | 220 / 380 / 415 / 440 V |
| Connected rating | 20KVA / 26KVA / 34KVA |
| Maximum stock removal rate | 600/800/1000/1200/1600/2000 mm3/min |
| Bst surface roughness | Ra≤0.1μm |
| Best electrode wearing rate | <0.2% (specific equip<0.1%) |
