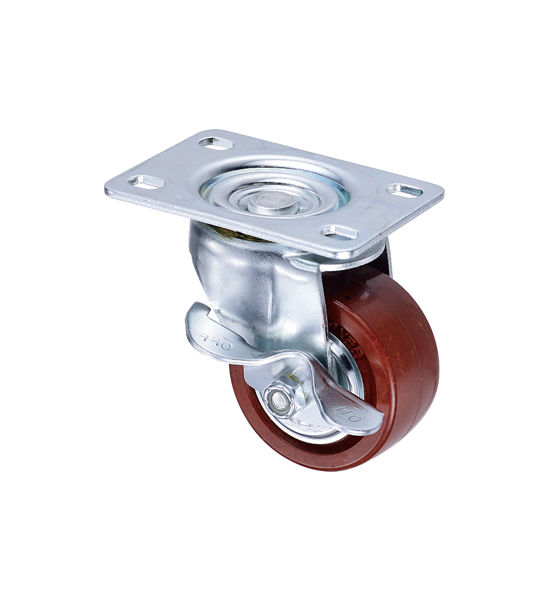

2.5" Lock Brake Small Phenolic Wheels for Furniture

Model:
EB065BS-PHS/ EB065BS-PHP
Country of Origin:
Taiwan
Material:
Phenolic Resin

Detail Specifications / Descriptions

Type: Side Wheel Brake Caster
Wheel Diameter x Width: 2½x1¼ inch (62x32 mm)
Overall Height: 92 mm
Load Capacity: 150 kg
Bolt Hole Center: 44x73 mm
Plate Size: 70x96 mm
Bolt Hole: Φ9x12
Wheel Bearing: Plain and Sleeve Bearing/ #6000 Double Ball Bearings
Fork Structure: Pressed Steel;Zinc Plated
Eccentricity: 28 mm
Weight: 0.54 kg/ 0.605 kg
Others: Steel Wheel Cover

1. Wheel: Phenolic wheel filled with fabric and it provides the features of superior floor protection, and resists hard impacts, most chemicals and steam.
2. Bearing: Plain and sleeve bearing to strengthen the protection between the axis and hub.
3. Bearing: #6000 double ball bearings to improve the rolling.
4. Fork: Side Wheel Brake with top plate. Pressed steel and integrally formed. Zinc plated.
5. Steel wheel covers to prevent the dust, water and other materials.
6. High temperature resistance: -20~+220℃
