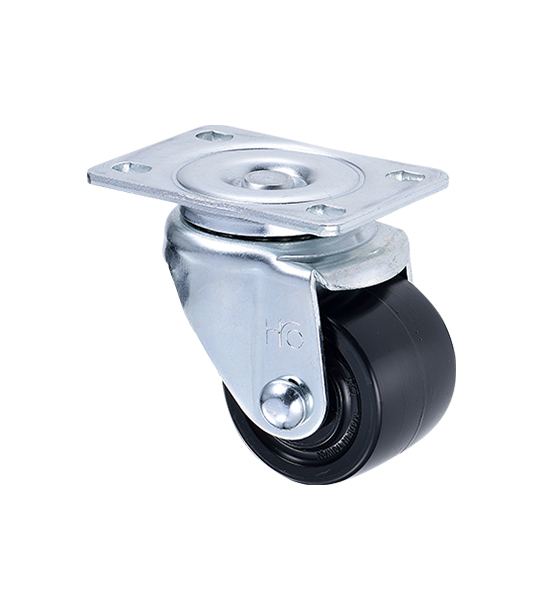

2.5 x 2 High Durable and Resistance Nylon Swivel Castor
- Model:
- A252SW-NLS/ A252SW-NLR/ A252SW-NLP
- Country of Origin:
- Taiwan
- Material:
- Nylon
Detail Specifications / Descriptions
Type: Swivel Caster
Wheel Diameter x Width: 2½x2 inch (62x48 mm)
Overall Height: 92 mm
Load Capacity: 200 kg
Bolt Hole Center: 44x73 mm
Plate Size: 70x96 mm
Bolt Hole: Φ9x12
Wheel Bearing: Plain and Sleeve Bearing/ Roller Bearing/ #6201 Double Ball Bearings
Fork Structure: Pressed Steel；Zinc Plated
Eccentricity: 28 mm
Weigh: 0.86 kg/ 0.9 kg/ 0.81 kg
1. Wheel: High grade of nylon wheel, which is injection molding, with the features of wear, moisture, corrosion resistance and high load capacity.
2. Bearing: Plain and sleeve bearing- strengthen the protection between the axis and hub.
3. Bearing: Roller Bearing- increases the load capacity.
4. Bearing: Double ball bearings- #6201, improve the rollability.
5. Fork: Swivel fork with top plate. Pressed steel and integrally formed. Zinc plated.
