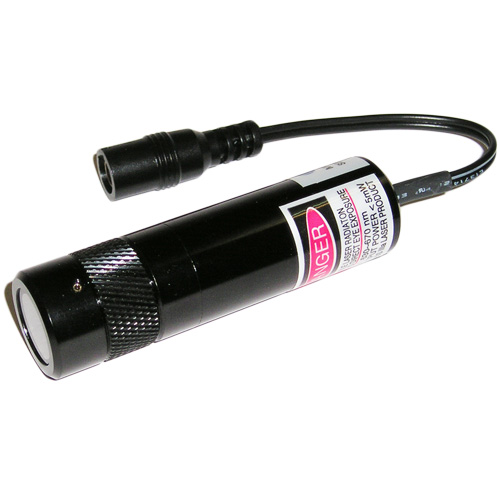

Cross Mark-KML-3000C series
- Model:
- KML-3501C / KML-3502C / KML-3503C
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
波 長(Wavelength): 630 ~ 650 nm 可見紅光(RED)
輸出功率(Output Power): 1 mW / 2 mW / 3 mW
標線長度(Line Length): < 15 cm / < 30 cm / < 45 cm / each line
輸入電壓(Input Voltage): DC 4.5 ~ 8V；AC 90 ~ 260V to DC 5V Adaptor (PS1)/PS3/PS5；DC 24V
操作溫度(Operating Temp.): – 10 ~ 50 °C
安全等級(Safety Class): Class Ⅱ / Class Ⅲa
使用壽命(Lifetimes): >15,000 小時 (hr)
外觀尺寸(Dimensions): D 20 X L 72 (mm)；D20 X L82 (mm)
重 量(Weight): 50 ± 5 公克 (g)； 60 ± 5 公克 ( g )
適用行業(Applications):
-布料加工 Fabric processing
-自行車加工 Bicycle processing
-鐵材加工 Metal working
-印刷品加工 Print processing
-裁紙加工 Paper processing
-高爾夫球具加工 Golf processing
-縫紉加工 Sewing processing
