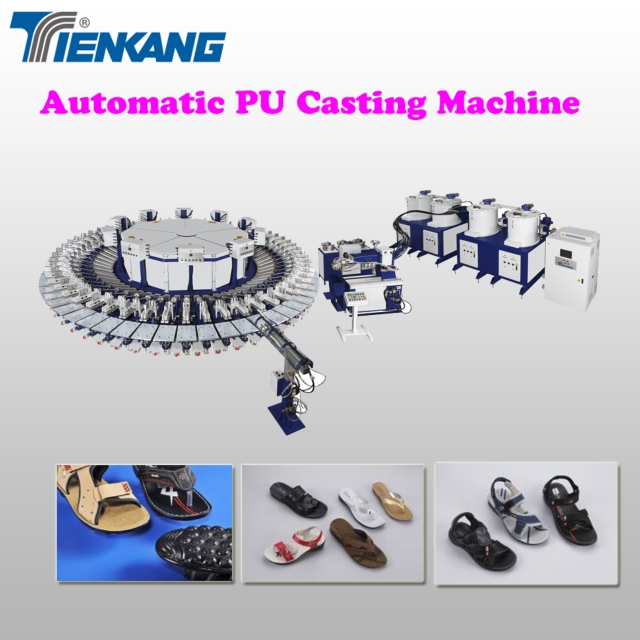

Automatic PU Casting Machine

Casting Unit
1. Quick-lock device is equipped for rapid screw changing.
2. Detachment sensor of mixing chamber is equipped to prevent the spindle from rotating when the mixing chamber is detached.
3. Delivery channels of Iso and Poly are equipped with synchronized device of double needle valve for flowing or cut-off at the same time to ensure the accurate mixing ratio.

Mold Carrier Unit
1. Clamping force at each station is 50 kN to provide the safe clamping.
2. Fast adjustment device of mold thickness compensation ensures the clamping force to fully acts on the mold by easily turning the handle after the mold is fixed. There is no need to use the extra pad to compensate the mold thickness.
3. Fast locating device is able to complete the mold fixing operation quickly.
4. Lower platens are heated by electricity and under temperature control.
5. The mold angle can be adjusted by the angle adjustment device to change the inclining or declining angle.
6. Swaying cylinder as an option device can be equipped to sway the mold after casting to get the uniform appearance of the molded part.
