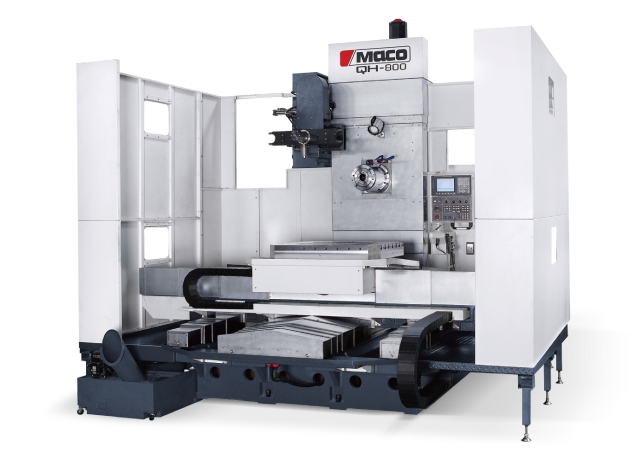

Horizontal Machining Center
- Model:
- QH-800/QH-810
Detail Specifications / Descriptions
QH-800/QH-810 Series Specification
X axis travel: 1200~1600 mm
Y axis travel: 1000 mm
Z axis travel: 1000mm
Single Pallet Size: 800~1000 mm
QH-800 Horizontal Machining Center
1.Robust Structure Design, High Loading Capacity, High Precision & High Speed Feed System
2.Extra wide base allows the table to be fully supported without overhang problem in its entire travel, therefore an optimal dynamic accuracy can be ensured.
3.Z-axis is mounted with 4 roller type linear motion guides with low friction coefficient, leading to accurate and smooth cutting feed.
4.X, Y, Z-axis are transmitted through precision ground ball screws which are directly coupled to the motors. This combined with the use of high precision angular contact ball bearing for pretension on ball screws so as to ensure the optimal feeding rigidity and accuracy.
Know more details follow E-catalogue linke:
https://drive.google.com/file/d/0B_xLYeeynk87ZHc3MmxKcU5ZVlE/
