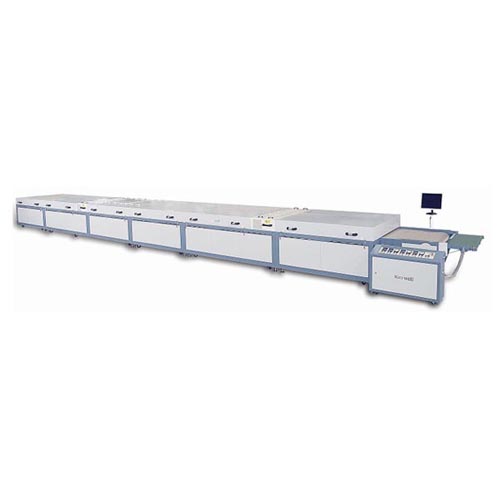

High Efficient Hot Air & UV Combined Dryer
- Model:
- KY-72UV+HA / KY-86UV+HA / KY-105UV+HA / KY-116UV+HA
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Suitable for drying paper, scratching card, financial card, FPC, membrane switch, plastic sheet, sticker … etc. after UV varnishing or screen printing.
Product Feature
1.The lowering type crossover-bridge can be connected with automatic or 3/4-auto screen printing machine. It’s easier for correcting and cleaning the screen frame.
2.CCTV for monitoring the status of the end section.
UV section:
1. American or European UV lamps.
2.Lampshade: With unique aluminum radiator and German reflector to achieve the maximum UV output.
3.The specialized structure with high efficient exhauster helps to reduce the oven temperature.
4.With bottom suction to prevent the substrate from fluttering.
5.Other functions are the same as UV dryer KY-72BII.
Hot air section:
1.Temperature controlled by SCR with P.I.D. settings to have accurate temperature (±2℃).
2.Double layer insulation to prevent the heat from leaking out.
3.Equip with exhauster to have clean air in the working room and dry the substrates quickly.
4.Nitrogen cylinders help to open the oven hood easily (electricity, air/oil pressure free), and ensure operator’s safety while doing the maintenance.
5.Safety device – emergency buttons at inlet and outlet section, overload protecting switch, overheating alarm, overload protectors for motors, fuses for controlling circuit.
