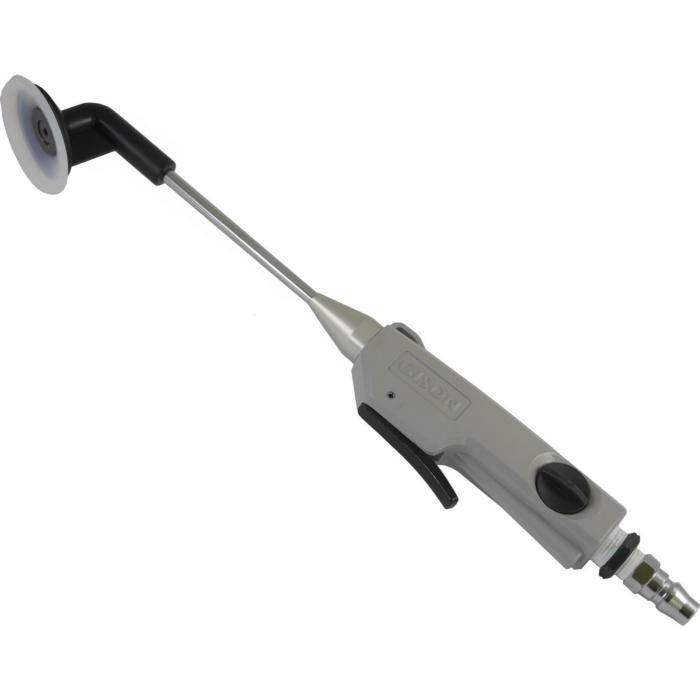

Handy Air Vacuum Suction Lifter & Air Blow Gun (2 in 1,Mark-Free,)
- Model:
- GP-SA40
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Air Vacuum Sction Pen
You can use this Handy Mark-Free Air Vacuum Suction Lifter to avoid labor work injuries, increased job safety.
Specification:
•Suction Cup Size : 50 mm
•Capacity : 2 kgs (for smooth iron)
•Weight : 0.31 kg (not include air inlet)
•Size : 32 x 4 x 5.5 cm (LxWxH)
•Working Air Pressure : 6.3 kgf/cm2 (90 psi)
•Air Inlet : 1/4"
•Hose Size : 5 mm
•Air Cons. : 0.08 m3/min (3 SCFM)
•Sound Pressure : 72.6 dBA
Features:
•The conventional suction can only apply to smooth surfaces, but the novel vacuum suction can apply to coarse surfaces such as bricks, cartons, polyurethane foam, flat wood etc.
•The vacuum suction works real time onto the surface, so the object can be moved. The vacuum suction is null as the trigger is pushed after the object is moved.
•The ON/OFF state of the vacuum suction fails to damage the surfaces.
•The air suction lifter can work as the air blow gun without using the suction.
•The maximal capacity of the vacuum suction lifter applying to smooth surfaces is up to 2 kgs.
•The Suction Cup of GP-SA40 is a mark-free material that leaves no trace on the object being handled (ex. glass,lenses,wafer,panel,a glass substrate,solar panels...).
•The Max. apply temperature is 200 degrees centigrade.
•The vacuum suction can apply to not only objects suction in the water but also water suction.
•The aluminum alloy body is sturdy and durable.
•It is light and handy.
•With the low air consumption, the 2-in-1 air suction lifter can work with the small 2 HP air compressor without the additional vacuum pump (vacuum generator)
Applications:
•This Handy Air Vacuum Suction Lifter can apply
•1. It is dangerous if you touch the object's surface by your hand.
•2. The object temperature is too high ( Max.Temperature is 200 degrees centigrade ).
•3. Moving process is dangerous.
•You can use this Handy Air Vacuum Suction Lifter to avoid labor work injuries, increased job safety.
