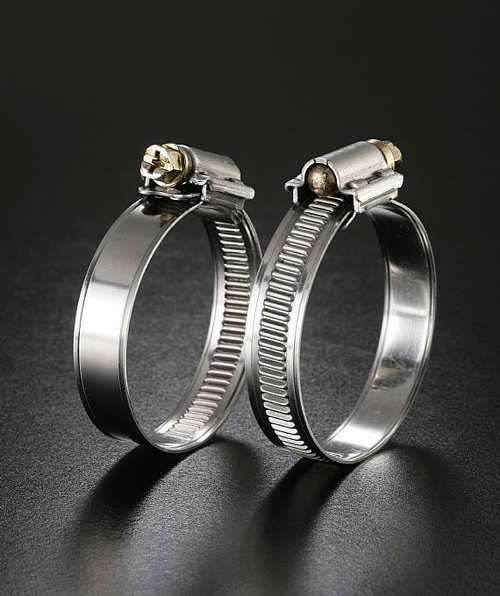

Germany Type Enhancement Sort Series

Germany Type Enhancement Sort Series

Model:
SY-09H (13mm)
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Features:
The biggest difference between this item and SY-09 is that the shell body adopts upper/lower part combination method’. The hook-up method is equal in tech level to that applied to many big companies in European and USA.

1.The shell body material adopts 304H high steel characteristic.
Materials got high tensile and won’t deform , which gets to boost the pulling strength of hose clamp.

2.The band of hose clamp adopts ‘non-perforation structure’, which protects soft hose from getting extruded (squeezed) out or even cut off by slot hole of hose clamp when in high-pressure fastening (clamping tight).

3.The screw & bolt has been turned for many times..with accurate true roundness (circle), it gets to provide very good idle rotation rate.

4.This item has made it apply for‘steel band edge-pressing ’and ‘bur treatment production procedure’mold patents products band patents in Taiwan and many other countries.

Features of usage: good stability and can apply to intense
1.Shake or even a leaking environment under high pressure where any procedure is so difficult to be dealt with or even a seal task, which is most difficult to be attended to.
2.For example: normal heavy duty truck, all-terrain excavator, industry machinery, engine, piping for ships, etc.
quality test: after test conducting by ourselves, the effective torque value can reach as high as 80kgf.cm and without deformation. The max. destruction torque strength can even reach as high as more than 100kgf.cm.

material and spec.:
Band: width is 12.7mm; thickness is 0.7mm, 300 and 400 grade S.S.

Housing: inner width is 13mm, upper shell thickness is 1mm; lower shell thickness is 1.2mm, 300 and 400 grade S.S.

Screw : three types in all.

1. 7mm hexagon head 1022 series carbon steel
2. 7mm hexagon head 410 series S.S
3. 7mm hexagon head 304 series S.S.
