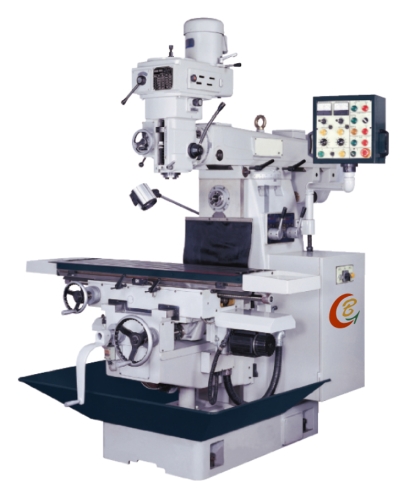

Knee Type Vertical & Horizontal Milling Series
- Model:
- JY-2HT
- Country of Origin:
- Taiwan
- Color:
- Gray,White,Red
Detail Specifications / Descriptions
Working surface: 1300×300 mm
X,Y Axes Feed Rate (Variable) mm/min : 1016 mm
Y Axes Rapid Travel mm/min : 600 mm
Z-Axis Rapid Travel mm/min : 620 mm
Spindle Nose: N.S.T. 40#
Spindle Speed: 16 Steps, 75-3600 / Variable, 80-3800 (Opt)
Horizontal Spindle: 5HP X 4P AC Motor
Turret Head Spindle: 5HP Pole Change Motor
Coolant Pump: 1/8HP
