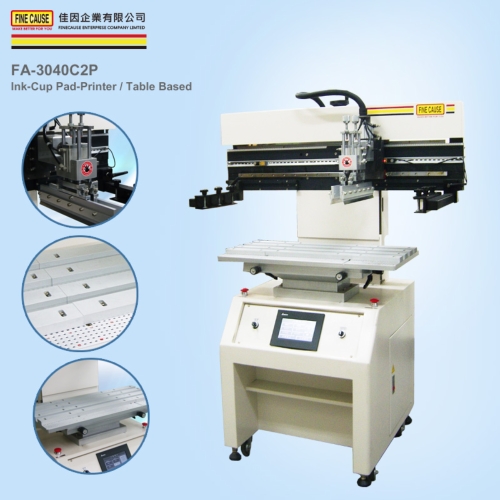

FA-3040C2P Screen Printer with Touch Panel
- Model:
- FA-3040C2P
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
☑Products
• FA-3040C2P Screen Printer with Touch Panel
• Squeegee Base Left to Right Stroke - Linear Slide and Precision Motor Deiven. More stable printing.
• 2 Screen Plate Arms can be adjusted Left to Right Seprately . Suitable for the screen plate length of 470 ~ 650 mm.
• Distance between screen plate printing is fixed and adjusted by precision tooth bar and hand wheel.
• Squeegee Structure can be lifted 45 degree and moved front to back for the printing position.
• Universal Sloted Platform - Suitable for fixing various jigs.
• Printing Positioning - X.Y.θ Fine Tunning from Platform
• Programmable Logical Controller
• Touch Panel Interface - Able to setup different parameters
Suitable for ：
• PCB. Fonts Printing
• SMT. Solder Paste Printing
• LCD. Frame Glue, Conductive Glue, Silverpaste Printing
☑Speciflcation
MIDEL：FA-3040C2P
air compressor：4-6kg
Voltage：220V, 1ψ,50/60HZ
MAX PRINTING AREA：330x250 mm
Platfform size：400x300 mm
SCreen Plate Size：470x370 mm
Platform Fine Tunning： X.Y±10 mmθ ±3∘
DIMENSION：L:900 W:700 H:1650
NET WT：250KG
