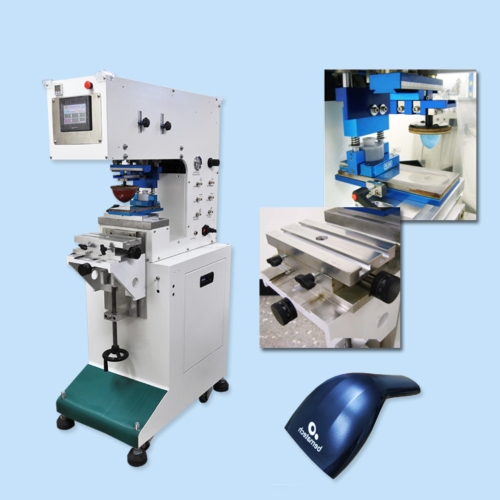

FC-125 Luxury Style Single-Color Ink-Cup Pad-Printer
- Model:
- FC-125
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
☑Products
65536 Color TFT Touch Panel
• PLC Control, Easy to Add Functions
• Adjustable Ink-Scraping Device (Pantent No. M311585).
Easy to adjust the pressure of the Ink-Scraping.
• Embedded Cost Saving Light Bulb
• Malfunction Detector. Screen Display
• Adjustable Ink-Cup Pressure
• Electronic Air Pressure Sensor
• Adjustable Steel Plate Base. Able to Change Angles front and back, left to right.
Suitable For:
Toys, stationery, jewelry, watch surface, electronic products, switches, buttons, metal finished and semi-finished products, ceramic glass products, products with uneven surface.
Additional precision indexing plate makes it easy to access the materials. It is also able to expand the automation peripherals to increase production.
＊Fine Cause produced pad printers own exclusive patent (No. M311585) and is different from others which only use magnet for suction function. Our new double-axis ink-scarping system makes it better and cleaner for scraping the ink
☑Speciflcation
Model：FC-125
Color：1
Steel Plate (mm)：L:200 W:90 H:10
Capacity/hr：1200~1800 Pcs
Dimension (cm)：L:70 W:40 H:135
Net W：105 Kgs
☑Video
http://www.finecause.com/video.php?act=view&no=11
☑DM
http://www.finecause.com/data/file/201303/1362715264G4CLJ.pdf
