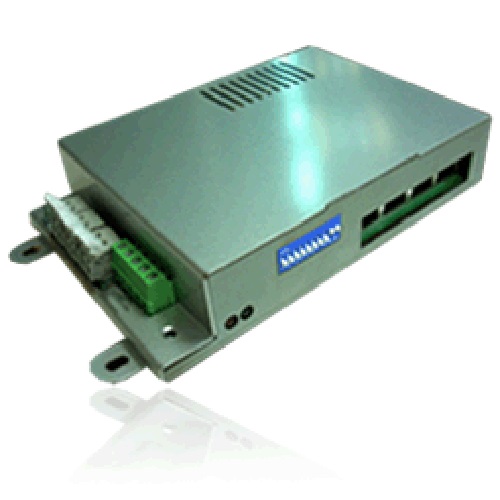

DALI Gateway
- Model:
- DG-104-F
Detail Specifications / Descriptions
- Enable multiple DALI systems construction by IDEN Gateway.
- Programming functionality for scenesetting, timeclock and partition control can be configured by IDEN DALI applications.
- Directly supply power to DALI controllers via RJ-45 ports.
- Easy to address, set up and expand to a large without limitation.
Specifications
LED Indicate：Power On Status / Green LED DALI Bus Transmission / Red LED
Communications Bus：RS-485x 1 channel RS-232x 1 channel DALIx1 channel
Transmission Distance：RS-485:1.3KM(point to point) RS-232:10M DALI:300M
Power Supply：AC-110V~220V
DALI Power：15W DC-15V 1A(Max)
DALI Bus Power Dissipation：0.2mA
Protocol & Interface
Protocol：IEC-62386 RS-485 or 232 Field Bus & ModBus
Connectivity：Unscrew Terminal Block AC-Inx1 DALI BUSx2 Terminal Block RS-232 for 3 Pole RS-485 for 2 Pole
Operating Temperature：-0C ~ 65C
Compliance：CE/FCC
Accessories：Quick Installation Guide
