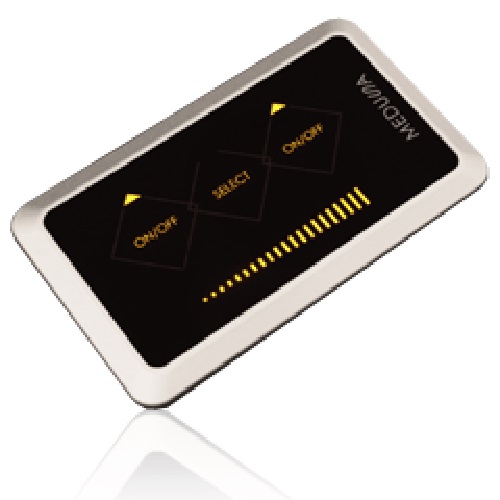

DIMMER CONTROLLER
- Model:
- CD301-SB
Detail Specifications / Descriptions
- MCU-based controller to ensure reliability & stability.
- Capacitive touch Input to give sleek & gleaming surface touching experience.
- Lighting scene and group can be configured by either adjustable DIP switch or personal computer system (DALI scene & grouping control gear version).
- Preconfigured design to give the most convenience when Implementing DALI system.
Specifications
DALI Control Gear：DALI Grouping and Dimmable Control Gear
Touch Sensor Block：3 Sensor Block + 1 Slider bar
DALI Command Trigger：2 DALI Grouping address within Dimmer 1 DALI Scene address
DALI Power Supply：DC-15V
Power Consumption：11mA
Mounted：In-Wall
Protocol & Interface
Protocol Standard：IEC-62386
Addressing DALI Ballast No.：63
Communication Bus：DALI
Connector：RJ-45 LAN Jack x 1
Lighting Scene and Grouping Mapping：Via Adjustable DIP Switch x 2
Accessories：Quick Install Guide
