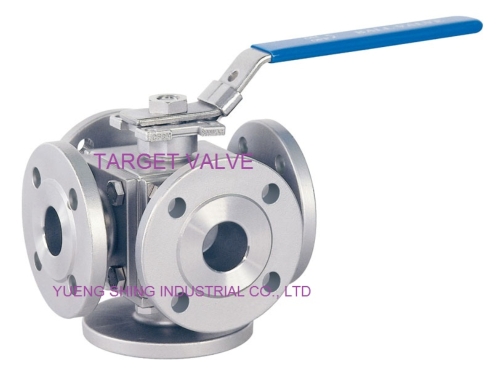

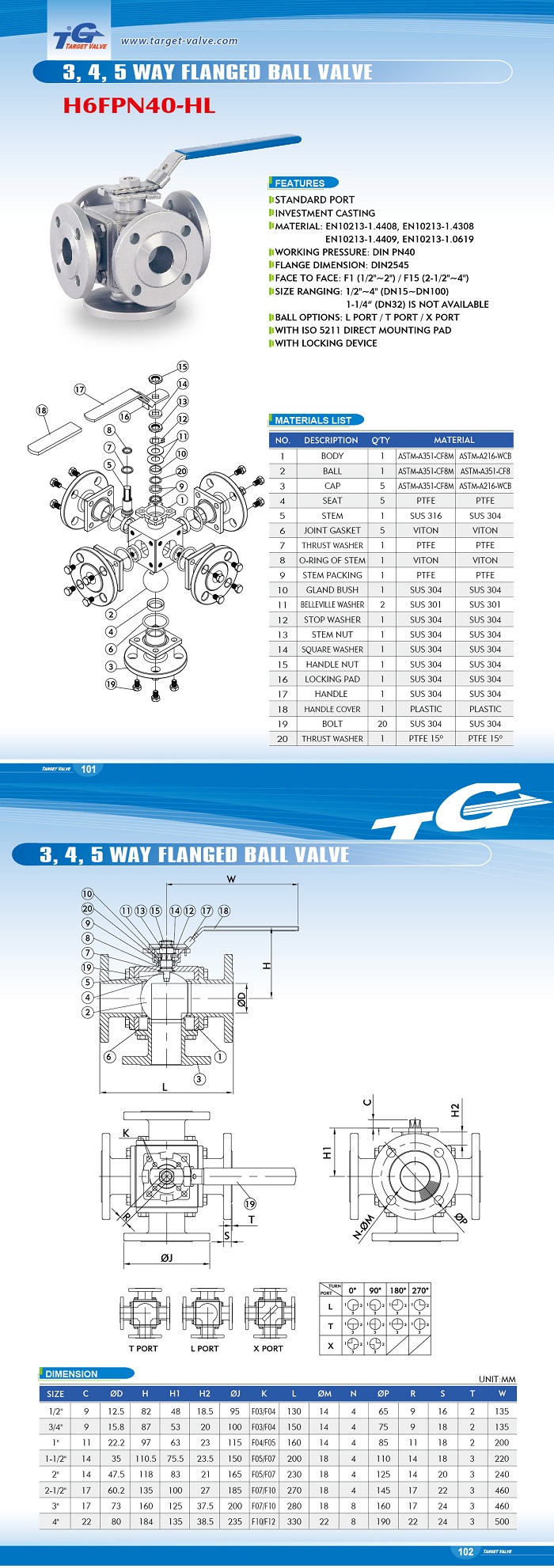

3-/ 4-/ 5-Way Flanged Ball Valve
- Model:
- H6FPN40-HL
- Country of Origin:
- Taiwan
- Material:
- EN10213-1.4408, EN10213-1.4308, EN10213-1.4409,
Detail Specifications / Descriptions
✽ Standard Port
✽ Investment Casting
✽ Material: EN10213-1.4408, EN10213-1.4308, EN10213-1.4409, EN10213-1.0619
✽ Working Pressure: DIN PN40
✽ Flange Dimension: DIN2545 (RF)
✽ Face to Face Dimension: F1 (1/2" ~ 2") / F15 (2-1/2" ~ 4")
✽ Size Ranging: 1/2" ~ 4" (DN15 ~ DN100), 1-1/4" (DN32) is not available
✽ Ball Options: L Port / T Port / F Port / X Port
✽ With ISO 5211 Direct Mounting Pad
✽ Options: Lever operation / Locking Device
✽ Electric Actuator / Spring-Return Actuators / Double-Acting Actuators
