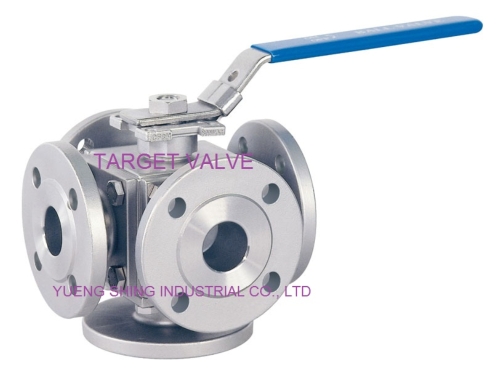

3- / 4- / 5-Way Flanged Ball Valve
- Model:
- H6FJ10K-HL
- Country of Origin:
- Taiwan
- Material:
- SCS 14A, SCS 13A, SCS 16A, WCB
Detail Specifications / Descriptions
✽ Standard Port
✽ Investment Casting
✽ Material: SCS 14A / SCS 13A / SCS 16A / WCB
✽ Working Pressure: JIS 10K
✽ Flange Dimension: JIS B2220 (RF)
✽ Face to Face Dimension: F1 (1/2" ~ 2" ) / F15 (2-1/2" ~ 4")
✽ Size Ranging: 1/2" ~ 4" (DN15 ~ DN100), 1-1/4" (DN32) is not available
✽ Ball Options: L Port / T Port / F Port / X Port
✽ With ISO 5211 Direct Mounting Pad
✽ Options: Lever operation / Locking Device
✽ Electric Actuator / Spring-Return Actuators / Double-Acting Actuators
