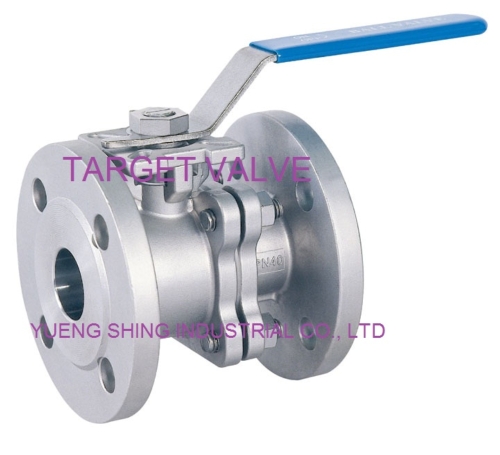

2-PC Flanged Ball Valve
- Model:
- H2FPN40F4
- Country of Origin:
- Taiwan
- Material:
- EN10213-1.4408, EN10213-1.4308, EN10213-1.4409,
Detail Specifications / Descriptions
✽ Full Port
✽ Investment Casting
✽ Material: EN10213-1.4408, EN10213-1.4308, EN10213-1.4409, EN10213-1.0619
✽ Working Pressure: 1/2" ~ 2" (DIN PN40) ; 2-1/2" ~ 4" (DIN PN16)
✽ Size Ranging: 1/2" ~ 4" (DN15 ~ DN100)
✽ Flange Dimension : DIN 2545 (RF)
✽ Face to Face Dimension : DIN 3202 / F4 TYPE
✽ With ISO 5211 Direct Mounting Pad
✽ Options: Lever operation / Locking Device
